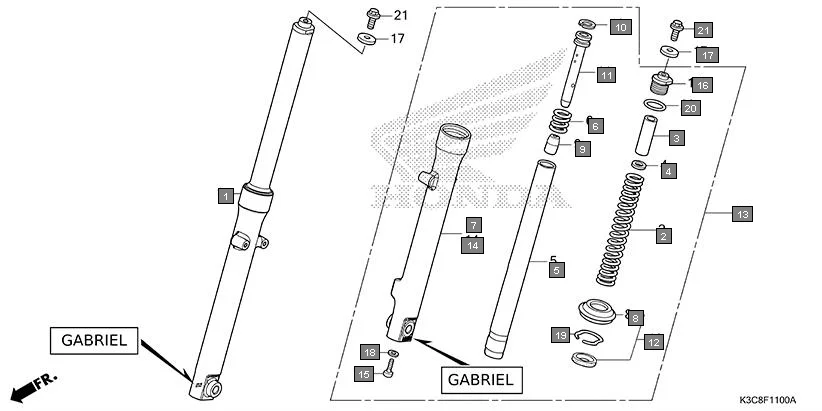

F-11 - FRONT FORK(GABRIEL)
HONDA Shine100 DX CD100RNT · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-K3C-D11 | FORK ASSY., R. FR.(GABRIEL) | 1 | |
| 2 | 51401-K3C-D11 | SPRING, FR. FORK(GABRIEL) | 2 | |
| 3 | 51403-K3C-D11 | COLLAR, SPRING(GABRIEL) | 2 | |
| 4 | 51404-K14-C01 | JOINT, SPRING(GABRIEL) | 2 | |
| 5 | 51410-K3C-D11 | PIPE COMP., FR. FORK(GABRIEL) | 2 | |
| 6 | 51412-K0P-D01 | SPRING, REBOUND(GABRIEL) | 2 | |
| 7 | 51420-K3C-D11 | CASE, R. FR. BOTTOM(GABRIEL) | 1 | |
| 8 | 51425-K14-C01 | SEAL, DUST(GABRIEL) | 2 | |
| 9 | 51432-K3C-D11 | PIECE, OIL LOCK(GABRIEL) | 2 | |
| 10 | 51437-K14-C01 | RING, PISTON(GABRIEL) | 2 | |
| 11 | 51440-K3C-D11 | FORK ASSY., R. FR.(GABRIEL) | 2 | |
| 12 | 51490-K14-C01 | SEAL SET, FR. FORK(GABRIEL) | 2 | |
| 13 | 51500-K3C-D11 | FORK ASSY., L. FR.(GABRIEL) | 1 | |
| 14 | 51520-K3C-D11 | CASE, L. FR. BOTTOM(GABRIEL) | 1 | |
| 15 | 90116-K14-C01 | BOLT, SOCKET, 8MM(GABRIEL) | 2 | |
| 16 | 90123-K14-C01 | BOLT A, FR. FORK(GABRIEL) | 2 | |
| 17 | 90521-427-770 | WASHER 10.3 MM | 2 | |
| 18 | 90544-K14-C01 | WASHER, SPECIAL, 8MM(GABRIEL) | 2 | |
| 19 | 90651-K14-C01 | RING, OIL SEAL STOP(GABRIEL) | 2 | |
| 20 | 91351-K14-C01 | O-RING(GABRIEL) | 2 | |
| 21 | 95702-10020-00 | BOLT, FLANGE, 10X20 | 2 | |
