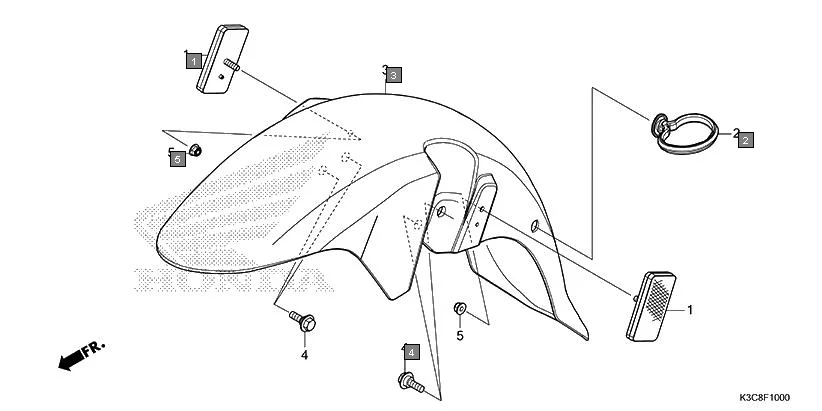

F-10 - FRONT FENDER
HONDA Shine100 DX CD100RNT · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 45451-KTE-D00 | GUIDE, FR. FENDER CABLE | 1 | |
| 3 | 61101-K3C-D10 | FENDER, FR. | 1 | |
| 4 | 90107-KTW-900 | BOLT, SPECIAL, 6MM | 4 | |
| 5 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
