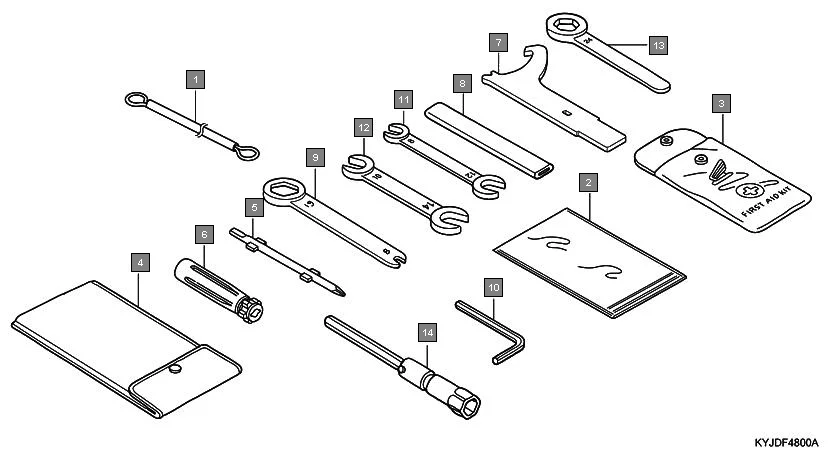

F-48 - TOOLS
HONDA CBR250R CBR250RB · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77236-KAZ-780 | WIRE, HELMET SET | 1 | |
| 2 | 77251-GR1-000 | BAG, SERVICE BOOK | 1 | |
| 3 | 84510-KWP-900 | AID KIT, FIRST (STERIMED SURGICALS) | 1 | |
| 4 | 89101-MC7-000 | BAG, TOOL | 1 | |
| 5 | 89102-KTE-910 | DRIVER NO.2 PLUS MINUS | 1 | |
| 6 | 89103-KPL-900 | GRIP | 1 | |
| 7 | 89202-KY1-700 | SPANNER, PIN | 1 | |
| 8 | 89215-KPL-900 | HANDLE, EYE WRENCH, 12MM | 1 | |
| 9 | 89218-KPL-900 | WRENCH, EYE, 19MM | 1 | |
| 10 | 89221-429-000 | WRENCH, HEX., 5MM | 1 | |
| 10 | 89221-KYJ-H00 | WRENCH, HEX., 5MM | 1 | |
| 11 | 99001-08120 | SPANNER, 8 X 12 | 1 | |
| 12 | 99001-10140 | SPANNER, 10 X 14 | 1 | |
| 13 | 99006-24000 | WRENCH, EYE, 24MM | 1 | |
| 14 | 89216-MAT-000 | WRENCH, PLUG(16.5) | 1 | |
