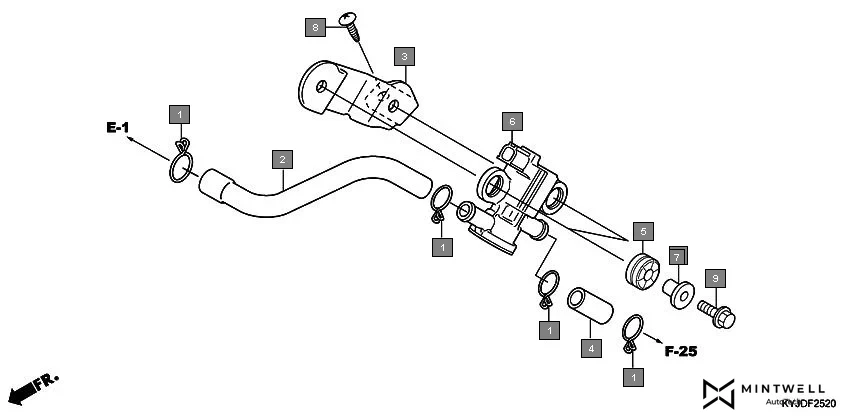

F-25-20 - AIR INJECTION SOLENOID VALVE
HONDA CBR250R CBR250RB · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15772-551-000 | CLIP, BREATHER TUBE | 4 | |
| 2 | 18613-KYJ-900 | HOSE, AIR INJECTION SOLENOID VALVE | 1 | |
| 3 | 18652-KYJ-900 | STAY COMP., AIR INJECTION SOLENOID VALVE | 1 | |
| 4 | 18653-KYJ-900 | TUBE(AISV-AIR CLEANER) | 1 | |
| 5 | 33115-KVK-900 | RUBBER, HEADLIGHT | 2 | |
| 6 | 36450-KVK-901 | VALVE ASSY., AIR INJECTION SOLENOID | 1 | |
| 7 | 61104-428-010 | COLLAR, FR. FENDER(WHITE)..... (FOR RR.) | 2 | |
| 7 | 61104-428-730 | COLLAR, FR. FENDER(BLACK)..... (FOR RR.) | 2 | |
| 9 | 95701-06022-08 | BOLT, FLANGE, 6X22 | 2 | |
| 9 | 95702-06022-08 | BOLT, FLANGE, 6X22 | 2 | |
