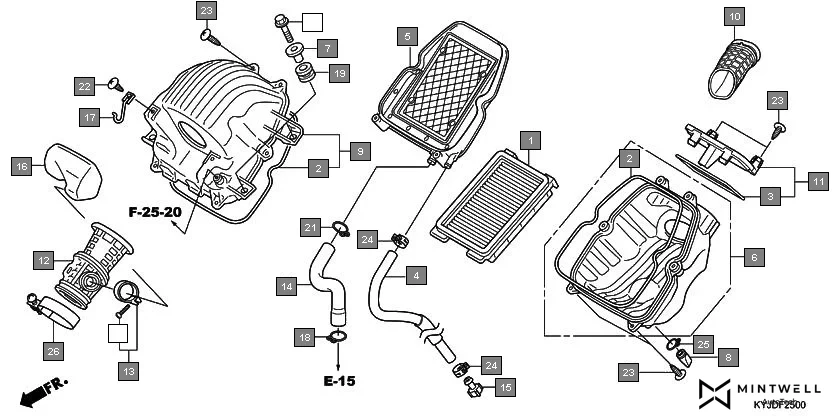

F-25 - AIR CLEANER
HONDA CBR250R CBR250RB · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17211-KYJ-710 | ELEMENT COMP., AIR CLEANER | 1 | |
| 2 | 17213-KYJ-900 | SEAL, AIR CLEANER | 2 | |
| 3 | 17214-KYJ-900 | SEAL, LID | 1 | |
| 4 | 17215-KYJ-900 | TUBE, AIR CLEANER DRAIN | 1 | |
| 4 | 17215-KYJ-901 | TUBE, AIR CLEANER DRAIN | 1 | |
| 5 | 17220-KYJ-710 | HOLDER COMP., ELEMENT | 1 | |
| 6 | 17225-KYJ-710 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 7 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 4 | |
| 8 | 17234-KCW-871 | TUBE, AIR CLEANER DRAIN | 1 | |
| 9 | 17235-KYJ-710 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 10 | 17240-KYJ-710 | DUCT, INLET | 1 | |
| 11 | 17245-KYJ-710 | LID SUB ASSY., AIR CLEANER | 1 | |
| 12 | 17253-KYJ-710 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 13 | 17255-MCG-000 | BAND, RESONATOR(28) | 1 | |
| 14 | 17265-KYJ-900 | TUBE, BREATHER | 1 | |
| 15 | 17370-419-700 | PLUG, BREATHER TUBE | 1 | |
| 16 | 17410-KYJ-710 | RESONATOR | 1 | |
| 17 | 17512-KYJ-960 | GUIDE, BREATHER TUBE | 1 | |
| 18 | 17724-102-700 | CLIP, SUB TANK HOSE | 1 | |
| 19 | 83545-KCJ-690 | RUBBER, SIDE COVER | 4 | |
| 20 | 90227-GHR-E00 | SCREW, PAN, 5X25 | 1 | |
| 20 | 90646-KYJ-DA0 | CLIP, AIR HOSE, 16MM | 1 | |
| 21 | 90646-657-000 | CLIP, AIR HOSE, 16MM | 1 | |
| 21 | 93500-05025-0G | SCREW PAN 5X25 | 1 | |
| 22 | 93903-25280 | SCREW, TAPPING 5X12 | 1 | |
| 23 | 93903-25480 | SCREW TAPPING 5X20 | 10 | |
| 24 | 95002-41200-00 | CLAMP D12.0 TUBE | 2 | |
| 25 | 95002-80000 | CLIP,C12 TUBE | 1 | |
| 25 | 90652-KYJ-DA0 | CLIP, TUBE(C12) | 1 | |
| 26 | 95018-56250 | BAND, AIR CLEANER CONNECTING TUBE(56) | 1 | |
| 27 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 4 | |
| 27 | 95702-06020-08 | BOLT, FLANGE, 6X20 | 4 | |
