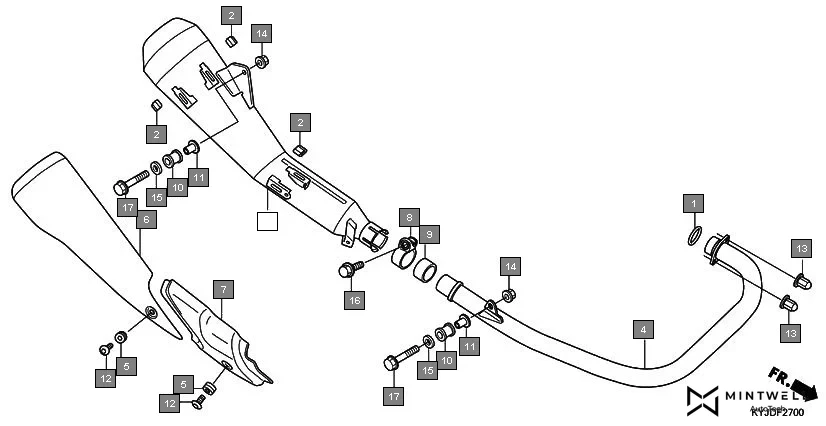

F-27 - EXHAUST MUFFLER
HONDA CBR250R CBR250RB · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18291-MEB-670 | GASKET, EX. PIPE | 1 | |
| 2 | 18293-MN0-000 | RUBBER, PROTECTOR | 3 | |
| 3 | 18310-KYJ-710 | MUFFLER COMP. | 1 | |
| 4 | 18320-KYJ-710 | PIPE COMP., EX. | 1 | |
| 5 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 6 | 18355-KYJ-900 | COVER A, MUFFLER | 1 | |
| 7 | 18356-KYJ-900 | COVER B, MUFFLER | 1 | |
| 8 | 18373-KYJ-900 | BAND, MUFFLER | 1 | |
| 9 | 18392-KYJ-901 | PACKING, MUFFLER | 1 | |
| 10 | 18421-MB0-000 | RUBBER, MUFFLER MOUNTING | 2 | |
| 11 | 18422-KAF-700 | COLLAR, MUFFLER MOUNTING | 2 | |
| 12 | 90113-KYJ-710 | SCREW, PAN, 6X12 | 2 | |
| 13 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 14 | 94050-08000 | NUT, FLANGE, 8MM | 2 | |
| 15 | 94103-08000 | WASHER, PLAIN, 8MM | 2 | |
| 16 | 95701-08038-02 | BOLT, FLANGE, 8X38 | 1 | |
| 16 | 95702-08038-02 | BOLT, FLANGE, 8X38 | 1 | |
| 17 | 95701-08050-00 | BOLT, FLANGE, 8 X 50 | 2 | |
| 17 | 95702-08050-00 | BOLT, FLANGE, 8X50 | 2 | |
