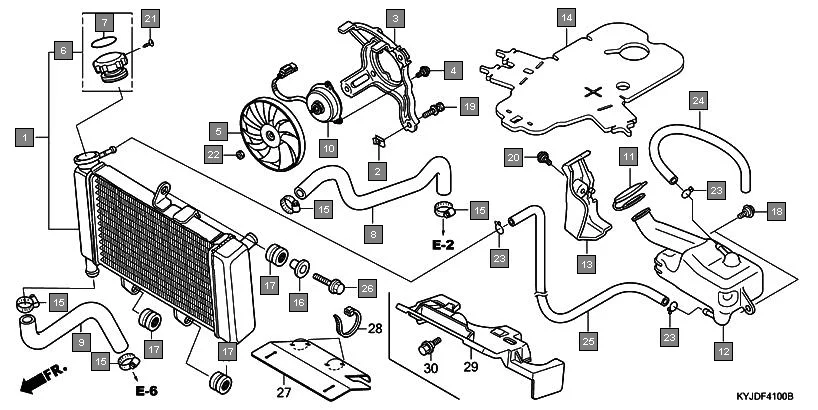

F-41 - RADIATOR
HONDA CBR250R CBR250RB · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19010-KYJ-921 | RADIATOR COMP. | 1 | |
| 2 | 19014-KEA-003 | NUT, SETTING(6MM) | 3 | |
| 3 | 19015-KYJ-901 | SHROUD COMP. | 1 | |
| 4 | 19016-KEA-003 | SCREW, PAN, 4X8.5 | 3 | |
| 5 | 19020-KVZ-631 | FAN COMP., COOLING | 1 | |
| 6 | 19045-KPC-D51 | CAP COMP., RADIATOR(T.RAD) | 1 | |
| 7 | 19055-KPC-D51 | SEAL, RADIATOR CAP | 1 | |
| 8 | 19062-KYJ-900 | HOSE, RADIATOR UPPER | 1 | |
| 9 | 19067-KYJ-900 | HOSE, RADIATOR LOWER | 1 | |
| 10 | 19080-KYJ-901 | MOTOR ASSY., FAN | 1 | |
| 11 | 19109-KPC-640 | CAP, RESERVE TANK | 1 | |
| 12 | 19110-KYJ-900 | TANK, RADIATOR RESERVE | 1 | |
| 13 | 19111-KYJ-900 | COVER, RADIATOR RESERVE TANK | 1 | |
| 14 | 19125-KYJ-900 | RUBBER, HEAT GUARD | 1 | |
| 15 | 19517-ML7-691 | CLAMP, HOSE, 22-29MM | 4 | |
| 16 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 1 | |
| 17 | 61304-415-000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 | |
| 18 | 90111-162-000 | BOLT, FLANGE, 6MM | 2 | |
| 19 | 90120-KCR-003 | BOLT-WASHER, 6X16 | 3 | |
| 20 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 1 | |
| 21 | 93901-22020 | SCREW, TAPPING, 3X6 | 1 | |
| 22 | 90315-MFL-003 | NUT, FLANGE, 3MM | 1 | |
| 23 | 95002-02100 | CLIP, B-10 TUBE | 3 | |
| 24 | 95005-55350-20 | TUBE, 5.3X350(95005-55001-20M) | 1 | |
| 25 | 19105-KYJ-900 | TUBE, RADIATOR BREATHER | 1 | |
| 26 | 95701-06022-07 | BOLT,FLANGE,6 X 22 | 1 | |
| 26 | 95702-06022-07 | BOLT, FLANGE, 6X22 | 1 | |
