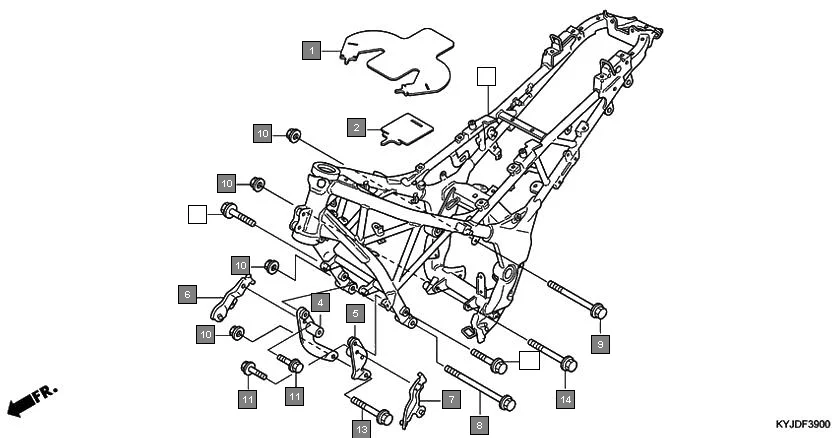

F-39 - FRAME BODY
HONDA CBR250R CBR250RB · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17543-KYJ-900 | RUBBER, GUARD | 1 | |
| 2 | 32800-KYJ-900 | RUBBER SHEET, HARNESS GUARD | 1 | |
| 3 | 50100-KYJ-T00 | BODY COMP., FRAME | 1 | |
| 3 | 50100-KYJ-610 | BODY COMP., FRAME | 1 | |
| 4 | 50351-KYJ-900 | PLATE COMP., R. FR. ENGINE HANGER | 1 | |
| 5 | 50361-KYJ-900 | PLATE COMP., L. FR. ENGINE HANGER | 1 | |
| 6 | 64315-KYJ-900 | STAY, R. COWL UNDER | 1 | |
| 7 | 64325-KYJ-900 | STAY, L. COWL UNDER | 1 | |
| 8 | 90111-KYJ-900 | BOLT, FLANGE, 10X273 | 1 | |
| 9 | 90113-KYJ-900 | BOLT, FLANGE, 10X145 | 1 | |
| 10 | 94050-10000 | NUT, FLANGE, 10MM | 4 | |
| 11 | 95701-08016-07 | BOLT FLANGE, 8 X 16 | 2 | |
| 11 | 95702-08016-07 | BOLT, FLANGE, 8X16 | 2 | |
| 12 | 95801-10070-00 | BOLT, FLANGE, 10X70 | 2 | |
| 12 | 95802-10070-00 | BOLT, FLANGE, 10X70 | 2 | |
| 13 | 95801-10105-00 | BOLT, FLANGE, 10X105 | 1 | |
| 13 | 95802-10105-00 | BOLT, FLANGE, 10X105 | 1 | |
| 14 | 95801-10130-00 | BOLT, FLANGE, 10X130 | 1 | |
| 14 | 95802-10130-00 | BOLT, FLANGE, 10X130 | 1 | |
