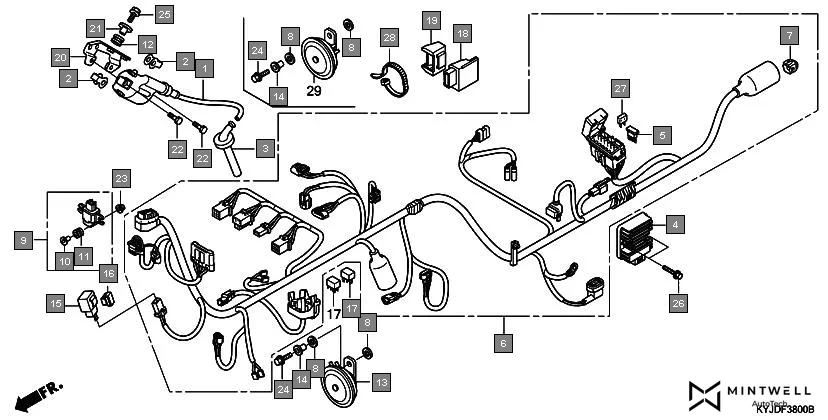

F-38 - WIRE HARNESS(CBR250R)
HONDA CBR250R CBR250RB · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30510-KYJ-901 | COIL COMP., IGNITION | 1 | |
| 2 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 3 | 30700-KY2-701 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 3 | 30700-KY2-702 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 4 | 31600-KVK-901 | RECTIFIER ASSY., REGULATOR | 1 | |
| 5 | 31730-MAS-601 | DIODE ASSY., THREE WAY (SUMITOMO) | 1 | |
| 6 | 32100-KYJ-710 | HARNESS, WIRE | 1 | |
| 6 | 32100-KYJ-T00 | HARNESS, WIRE | 1 | |
| 7 | 32606-GEV-761 | CAP, DUMMY(4P)(RED) | 1 | |
| 8 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 9 | 35160-KPP-T01 | SENSOR ASSY., BANK ANGLE | 1 | |
| 10 | 35162-MGC-003 | COLLAR | 2 | |
| 11 | 35163-MGC-003 | GROMMET | 2 | |
| 12 | 36043-657-000 | GROMMET, WIRE HARNESS | 2 | |
| 13 | 38110-KYJ-611 | HORN COMP. | 1 | |
| 13 | 38110-KYJ-T01 | HORN COMP.(HIGH) | 1 | |
| 14 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 14 | 38117-KYJ-T00 | COLLAR, HORN SETTING | 2 | |
| 15 | 38301-KTF-671 | RELAY COMP., WINKER | 1 | |
| 15 | 38120-KYJ-T01 | HORN COMP.(LOW) | 1 | |
| 16 | 38306-GE7-000 | SUSPENSION, WINKER RELAY | 1 | |
| 17 | 38501-KWN-901 | RELAY COMP., POWER (MICRO ISO 4P)(OMRON) | 2 | |
| 18 | 38770-KYJ-711 | PGM-FI UNIT | 1 | |
| 19 | 38771-GFM-900 | SUSPENSION, ENGINE CONTROL UNIT | 1 | |
| 19 | 38770-KYJ-T01 | PGM-FI UNIT | 1 | |
| 20 | 50204-KYJ-900 | STAY COMP., IGNITION COIL | 1 | |
| 21 | 50214-KYJ-900 | COLLAR, IGNITION COIL MOUNTING | 2 | |
| 22 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 24 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 24 | 95702-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 25 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 2 | |
| 25 | 95702-06016-08 | BOLT, FLANGE, 6X16 | 2 | |
| 26 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 26 | 95702-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 27 | 98200-41000 | FUSE, MINI(10A) | 6 | |
