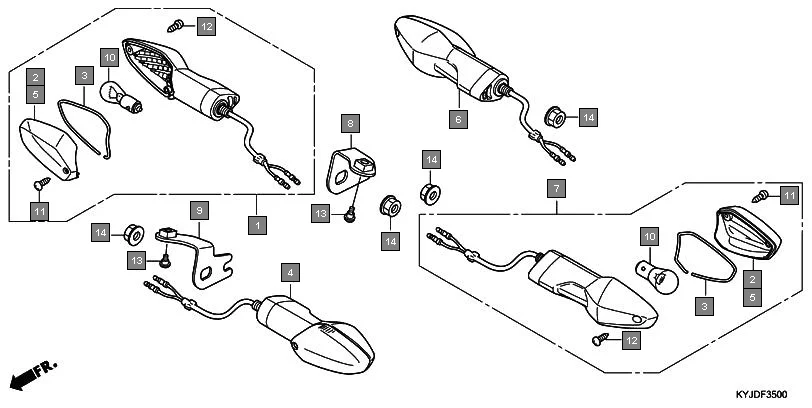

F-35 - WINKER
HONDA CBR250R CBR250RB · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-KYJ-901 | WINKER ASSY., R. FR.(12V 21W) | 1 | |
| 1 | 33400-KPP-N01 | WINKER ASSY., R. FR.(12V 21W) | 1 | |
| 2 | 33402-KWF-901 | LENS, R. WINKER (R. FR./L. RR.) | 2 | |
| 3 | 33406-KWF-901 | SEAL GASKET | 4 | |
| 4 | 33450-KYJ-901 | WINKER ASSY., L. FR.(12V 21W) | 1 | |
| 4 | 33450-KPP-N01 | WINKER ASSY., L. FR.(12V 21W) | 1 | |
| 5 | 33452-KWF-901 | LENS, L. WINKER (L. FR./R. RR.) | 2 | |
| 6 | 33600-KYJ-901 | WINKER ASSY., R. RR.(12V 21W) | 1 | |
| 6 | 33600-KPP-N01 | WINKER ASSY., R. RR.(12V 21W) | 1 | |
| 7 | 33650-KYJ-901 | WINKER ASSY., L. RR.(12V 21W) | 1 | |
| 7 | 33650-KPP-N01 | WINKER ASSY., L. RR.(12V 21W) | 1 | |
| 8 | 33941-KPP-T00 | STAY COMP., R. WINKER | 1 | |
| 9 | 33942-KPP-T00 | STAY COMP., L. WINKER | 1 | |
| 10 | 34905-KYJ-901 | BULB, WINKER(AMBER)(12V 21W) | 4 | |
| 10 | 34904-KTE-920 | BULB, WINKER(AMBER)(12V 21W)(PY21W) | 4 | |
| 11 | 90102-KYJ-901 | SCREW, TAPPING, 4X12 | 4 | |
| 12 | 90103-KYJ-901 | SCREW, TAPPING, 4X12 | 4 | |
