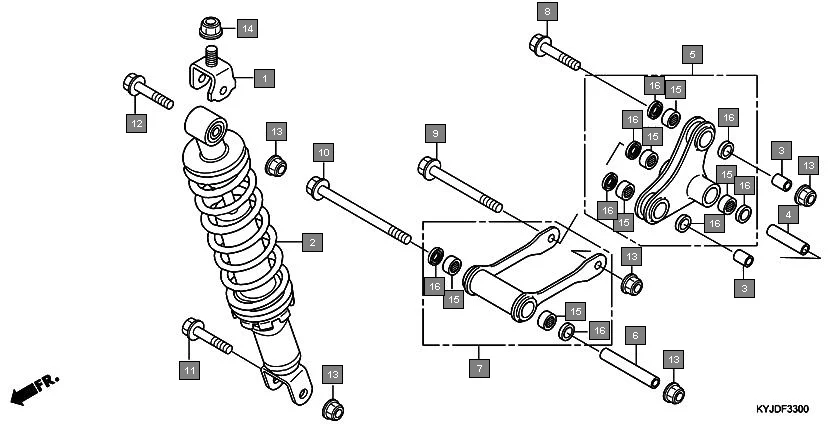

F-33 - REAR CUSHION
HONDA CBR250R CBR250RB · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50175-KYJ-900 | HOLDER COMP., RR. CUSHION UPPER | 1 | |
| 2 | 52400-KYJ-711 | CUSHION ASSY., RR. | 1 | |
| 3 | 52463-KYJ-900 | COLLAR B, CUSHION ARM | 2 | |
| 4 | 52464-KYJ-900 | COLLAR C, CUSHION ARM | 1 | |
| 5 | 52465-KYJ-900 | ARM SUB ASSY., CUSHION | 1 | |
| 6 | 52472-KYJ-900 | COLLAR, CUSHION CONNECTING ROD | 1 | |
| 7 | 52475-KYJ-900 | ROD SUB ASSY., CUSHION CONNECTING | 1 | |
| 8 | 90101-KBS-900 | BOLT, FLANGE, 10X65 | 1 | |
| 9 | 90101-KYJ-900 | BOLT, FLANGE, 10X106 | 1 | |
| 10 | 90104-KYJ-900 | BOLT, FLANGE, 10X146 | 1 | |
| 11 | 90152-KYJ-900 | BOLT, FLANGE, 10X55 | 1 | |
| 12 | 90153-KYJ-900 | BOLT, FLANGE, 10X53 | 1 | |
| 13 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 5 | |
| 15 | 91071-KYJ-711 | BEARING, NEEDLE, 17X24X17(NRB) | 6 | |
| 15 | 91071-MY1-005 | BEARING, NEEDLE, 17X24X17 (KOYO) | 6 | |
| 16 | 91262-KV3-831 | DUST SEAL, 17X24X5(ARAI) | 8 | |
