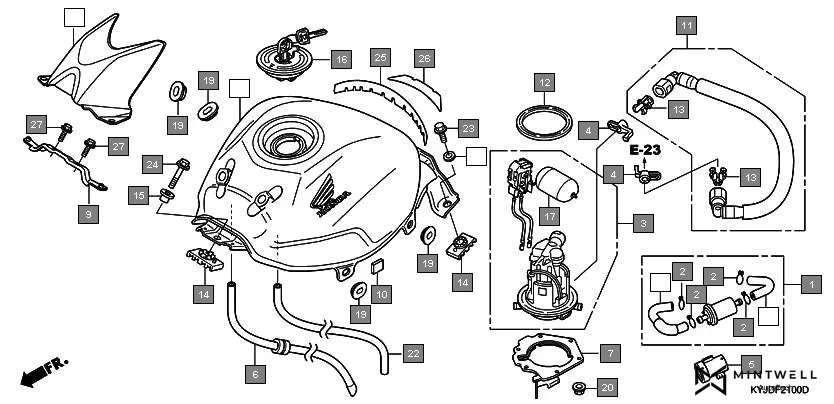

F-21 - FUEL TANK
HONDA CBR250R CBR250RB · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06160-KYJ-900 | FILTER KIT, FUEL | 1 | |
| 2 | 15771-KV6-000 | CLIP, OIL DRAIN TUBE | 4 | |
| 3 | 16700-KYJ-901 | PUMP ASSY., FUEL | 1 | |
| 4 | 16718-KTW-900 | DAMPER A, CONNECTOR | 2 | |
| 5 | 16912-KYJ-900 | HOLDER, FUEL FILTER | 1 | |
| 6 | 17418-KYJ-960 | TUBE, FUEL TANK BREATHER | 1 | |
| 7 | 17507-KYJ-900 | PLATE COMP., SETTING | 1 | |
| 8 | 17520-KYJ-900ZA | TANK SET, FUEL(WL)*TYPE1* | 1 | |
| 8 | 17520-KYJ-900ZB | TANK SET, FUEL(WL)*TYPE2* | 1 | |
| 8 | 17520-KYJ-900ZG | TANK SET, FUEL(WL)*TYPE3 1* | 1 | |
| 9 | 17522-KPP-T00 | STAY, TANK LID | 1 | |
| 10 | 17525-KPP-T00 | RUBBER, FUEL TANK | 2 | |
| 11 | 17570-KYJ-901 | HOSE COMP., FUEL FEED | 1 | |
| 12 | 17572-KTR-941 | GASKET, FUEL PUMP | 1 | |
| 13 | 17577-KSS-B31 | RETAINER(GRAY)(TOKAI) | 2 | |
| 14 | 17613-KPP-T00 | CUSHION, FUEL TANK | 3 | |
| 15 | 17614-KPP-T00 | COLLAR, FUEL TANK | 1 | |
| 16 | 17620-MCB-611 | CAP COMP., FUEL FILLER | 1 | |
| 17 | 37800-KYJ-901 | FUEL UNIT | 1 | |
| 18 | 64450-KPP-T00ZA | COVER, FUEL TANK *NHA35M* ASTEROID BLACK METALLIC | 1 | |
| 18 | 64450-KPP-T00ZG | COVER, FUEL TANK *R4C* CANDY RUBY RED | 1 | |
| 18 | 64450-KPP-T00ZH | COVER, FUEL TANK *NHA95M* SWORD SILVER METALLIC | 1 | |
| 19 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 6 | |
| 20 | 94050-06000 | NUT, FLANGE, 6 MM | 6 | |
| 21 | 94103-06800 | WASHER, PLAIN 6 MM | 2 | |
| 22 | 95005-80770-20 | TUBE, 8X770(95005-80001-20M) | 1 | |
| 24 | 95701-08025-08 | BOLT, FLANGE, 8X25 | 1 | |
| 24 | 95702-08025-08 | BOLT, FLANGE, 8X25 | 1 | |
| 25 | 17527-KPP-N00 | FILM A,TANK PROTECTOR | 1 | |
| 26 | 17528-KPP-N00 | FILM B, TANK PROTECTOR | 1 | |
| 27 | 93401-06014-00 | BOLT-WASHER, 6X14 | 2 | |
| 28 | 17541-KYJ-900 | TUBE A, FUEL PUMP | 1 | |
| 29 | 17542-KYJ-900 | TUBE B, FUEL PUMP | 1 | |
