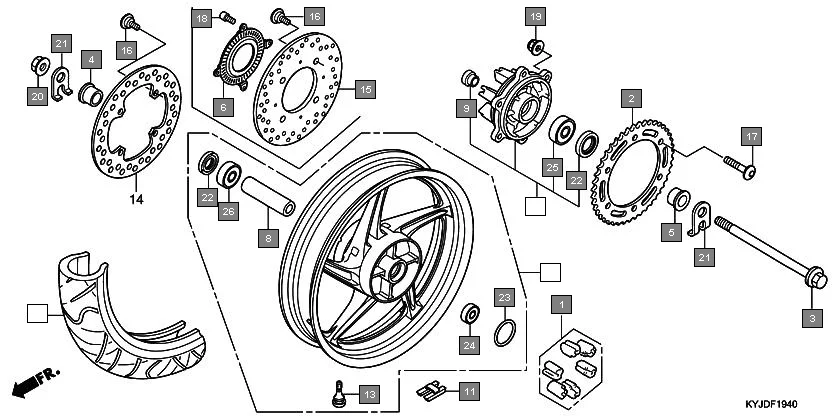

F-19-40 - REAR WHEEL
HONDA CBR250R CBR250RB · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-KEA-750 | DAMPER SET, WHEEL | 1 | |
| 2 | 41201-KYJ-900 | SPROCKET, FINAL DRIVEN(38T) | 1 | |
| 3 | 42301-KYJ-900 | AXLE, RR. WHEEL | 1 | |
| 4 | 42312-KYJ-900 | COLLAR, R. RR. WHEEL SIDE | 1 | |
| 5 | 42313-KYJ-900 | COLLAR, L. RR. WHEEL SIDE | 1 | |
| 6 | 42515-KYJ-910 | RING, RR. PULSER | 1 | |
| 7 | 42615-KYJ-710ZA | FLANGE SUB ASSY., RR. DRIVEN *NH146M* ACCURATE SILVER METALLIC | 1 | |
| 7 | 42615-KYJ-T00ZA | FLANGE SUB ASSY., RR. DRIVEN *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 8 | 42620-KYJ-900 | COLLAR, RR. WHEEL DISTANCE | 1 | |
| 9 | 42625-MC4-000 | COLLAR B, RR. AXLE DISTANCE | 1 | |
| 10 | 42650-KYJ-710ZA | WHEEL SUB ASSY., RR. *NH146M* ACCURATE SILVER METALLIC | 1 | |
| 10 | 42650-KYJ-T00ZB | WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 10 | 42650-KYJ-T00ZA | WHEEL SUB ASSY., RR. *YR250* VIBRANT ORANGE | 1 | |
| 12 | 42711-KYJ-712 | TIRE, RR.(CONTINENTAL) (140/70-17M/C66S) | 1 | |
| 12 | 42711-KYJ-713 | TIRE, RR.(CONTINENTAL) (140/70-17M/C66S) | 1 | |
| 12 | 42711-KYJ-903 | TIRE, RR.(IRC) (140/70-17M/C 66S) | 1 | |
| 12 | 42711-KYJ-T01 | TIRE, RR.(MRF) (140/70-17M/C66S) | 1 | |
| 15 | 43251-KYJ-612 | DISK, RR. BRAKE | 1 | |
| 16 | 90105-KSP-870 | BOLT, FRONT DISK, 8 X 24 | 4 | |
| 17 | 90128-KYJ-900 | BOLT, SPROCKET FIXING | 6 | |
| 18 | 90131-KYJ-910 | BOLT, HEX., 5X8 | 4 | |
| 20 | 90305-KYJ-711 | NUT, FLANGE, 16MM (PREVAILING TORQUE) | 1 | |
| 20 | 90306-KCJ-951 | NUT, U, 16MM | 1 | |
| 21 | 90559-KYJ-900 | WASHER, RR. SWINGARM | 2 | |
| 22 | 91253-443-761 | DUST SEAL, 30X47X8(ARAI) | 2 | |
| 22 | 91253-443-762 | DUST SEAL, 30X47X8(NOK) | 2 | |
| 23 | 91302-317-700 | O-RING, 54X2 | 1 | |
| 24 | 91081-KYJ-711 | BEARING, RADIAL BALL, 6203UU (NEI) | 1 | |
| 24 | 96150-62030-10 | BEARING, BALL RADIAL, 6203 (UU) | 1 | |
| 25 | 91082-KYJ-711 | BEARING, RADIAL BALL, 6204UU (NEI) | 1 | |
| 25 | 96150-62040-10 | BEARING, RADIAL BALL, 6204UU | 1 | |
| 26 | 91083-KYJ-711 | BEARING, RADIAL BALL, 6303UU (NEI) | 1 | |
| 26 | 96150-63030-10 | BEARING, RADIAL BALL, 6303UU | 1 | |
