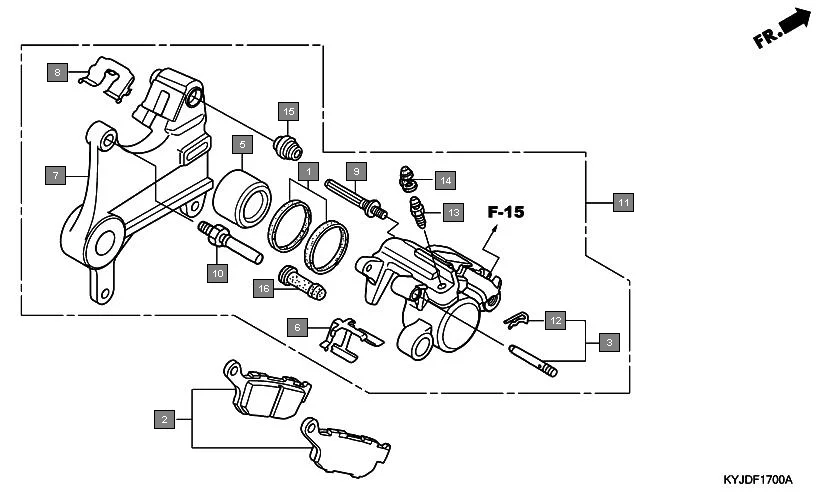

F-17 - REAR BRAKE CALIPER(CBR250R)
HONDA CBR250R CBR250RB · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06431-MAK-003 | SEAL SET, PISTON | 1 | |
| 2 | 06435-KYJ-711 | PAD SET, RR. | 1 | |
| 5 | 43107-KYJ-711 | PISTON | 1 | |
| 6 | 43108-KYJ-711 | SPRING, PAD | 1 | |
| 7 | 43110-KYJ-711 | BRACKET, RR. | 1 | |
| 8 | 43111-KYJ-711 | RETAINER | 1 | |
| 9 | 43131-KYJ-711 | BOLT, PIN(MAIN) | 1 | |
| 10 | 43132-KYJ-711 | BOLT, PIN(SUB) | 1 | |
| 11 | 43150-KYJ-711 | CALIPER SUB ASSY., RR. | 1 | |
