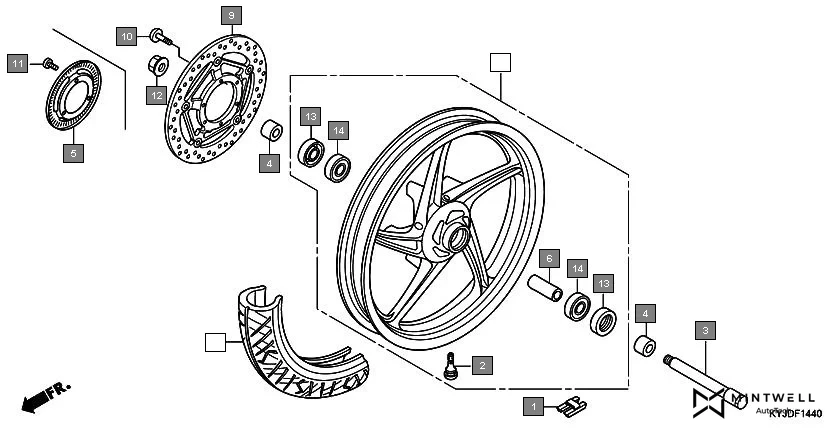

F-14-40 - FRONT WHEEL
HONDA CBR250R CBR250RB · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42704-MER-D00 | WEIGHT, BALANCE(10G) | 1 | |
| 1 | 42705-MER-D00 | WEIGHT, BALANCE(20G) | 1 | |
| 1 | 42706-MER-D00 | WEIGHT, BALANCE(30G) | 1 | |
| 2 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 3 | 44301-KYJ-900 | AXLE, FR. WHEEL | 1 | |
| 4 | 44311-KYJ-900 | COLLAR, FR. WHEEL | 2 | |
| 5 | 44515-MEJ-D01 | RING, FR. PULSER | 1 | |
| 6 | 44620-KYJ-900 | COLLAR, FR. AXLE DISTANCE | 1 | |
| 7 | 44650-KYJ-610ZA | WHEEL SUB ASSY., FR. *NH146M* ACCURATE SILVER METALLIC | 1 | |
| 7 | 44650-KYJ-610ZC | WHEEL SUB ASSY., FR.*NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 44650-KYJ-610ZB | WHEEL SUB ASSY., FR. *YR250* VIBRANT ORANGE | 1 | |
| 8 | 44711-KYJ-712 | TIRE, FR.(CONTINENTAL) (110/70-17M/C 54S) | 1 | |
| 8 | 44711-KYJ-713 | TIRE, FR.(CONTINENTAL) (110/70-17M/C 54S) | 1 | |
| 8 | 44711 KYJ 902 | TIRE, FR.(IRC) (110/70-17M/C 54S) | 1 | |
| 8 | 44711-KYJ-T01 | TIRE, FR.(MRF) (110/70-17M/C 54S) | 1 | |
| 9 | 45120-KYJ-711 | DISK COMP., R. FR. BRAKE | 1 | |
| 10 | 90106-KGH-600 | BOLT, BRAKE DISK, 6X17 | 6 | |
| 11 | 90131-KYJ-610 | BOLT, TORX, 5X10 | 3 | |
| 12 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 13 | 91252-MC7-003 | DUST SEAL, 22X42X7(ARAI) | 2 | |
| 14 | 96150-63020-10 | BEARING BALL RADIAL, 6302(UU) | 2 | |
