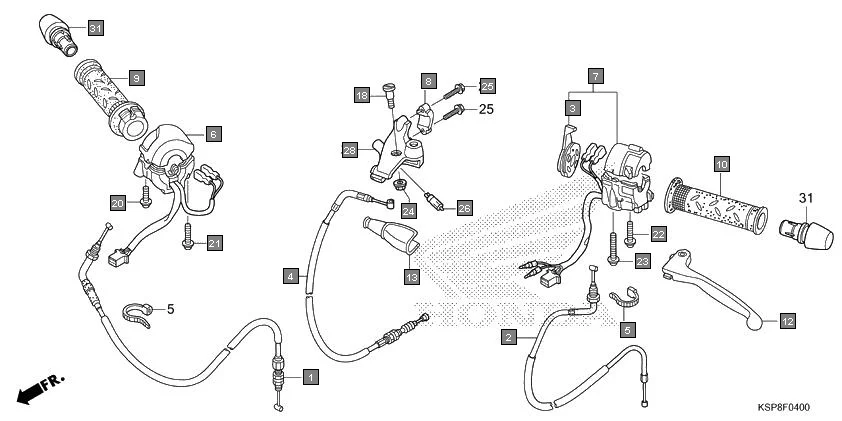

F-4 - HANDLE LEVER/SWITCH/CABLE
HONDA CB Unicorn CBF150MH · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-KSP-901 | CABLE COMP., THROTTLE | 1 | |
| 2 | 17950-KSP-900 | CABLE COMP., CHOKE | 1 | |
| 3 | 17962-KSP-900 | LEVER COMP., CHOKE | 1 | |
| 4 | 22870-KSP-901 | CABLE COMP., CLUTCH | 1 | |
| 5 | 32161-KSP-920 | BAND B1, WIRE | 2 | |
| 6 | 35150-KSP-D01 | SWITCH ASSY., STARTER | 1 | |
| 7 | 35200-KSP-920 | SWITCH ASSY., WINKER | 1 | |
| 9 | 53140-K38-940 | GRIP COMP., THROTTLE | 1 | |
| 10 | 53166-KSP-A70 | GRIP L HANDLE | 1 | |
| 12 | 53178-KSP-900 | LEVER COMP., L. HANDLE | 1 | |
| 13 | 53182-KSP-900 | BOOT, L. HANDLE COVER | 1 | |
| 18 | 90113-KSP-901 | BOLT, L. HANDLE LEVER PIVOT | 1 | |
| 20 | 93892-05020-07 | SCREW, WASHER, 5X20 | 1 | |
| 21 | 93892-05025-07 | SCREW, WASHER, 5X25 | 1 | |
| 22 | 93892-05035-07 | SCREW, WASHER, 5X35 | 1 | |
| 23 | 93892-05045-07 | SCREW, WASHER, 5X45 | 1 | |
| 26 | 35330-KEJ-900 | SWITCH COMP., FR. LEVER | 1 | |
| 28 | 53172-KRC-900 | BRACKET, HANDLE LEVER | 1 | |
| 31 | 53105-KRC-900 | END STRG. HANDLE | 2 | |
