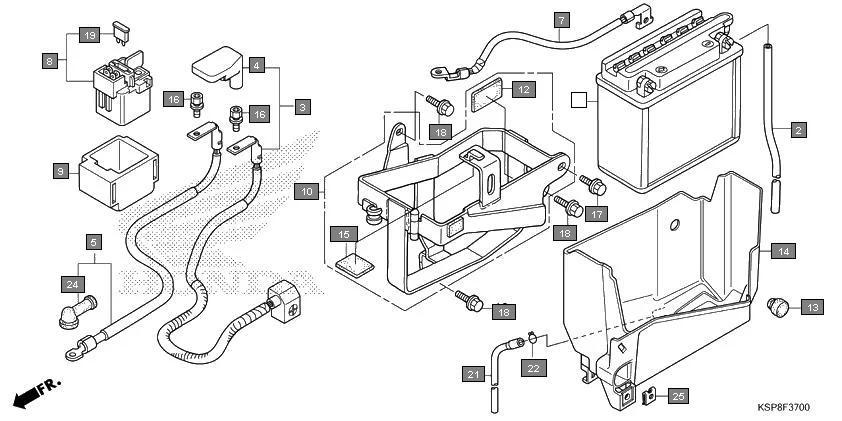

F-37 - BATTERY
HONDA CB Unicorn CBF150MH · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KSP-921 | BATTERY(YB7B-B) | 1 | |
| 2 | 31502-KSP-920 | TUBE, BATTERY BREATHER | 1 | |
| 3 | 32401-KSP-D00 | CABLE, STARTER MAGNETIC BATTERY | 1 | |
| 4 | 32406-KSP-860 | COVER, STARTER MAGNETIC TERMINAL | 1 | |
| 5 | 32410-KSP-860 | CABLE, STARTER MOTOR | 1 | |
| 7 | 32601-KSP-920 | CABLE, BATTERY EARTH | 1 | |
| 8 | 35850-K38-901 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 9 | 35856-KSP-920 | RUBBER, SHOCK | 1 | |
| 10 | 50380-KSP-860 | BOX COMP., BATTERY | 1 | |
| 12 | 50383-GB6-300 | RUBBER, BATTERY | 1 | |
| 13 | 50384-KSP-920 | RUBBER, BATTERY TRAY | 1 | |
| 14 | 50385-KSP-D00 | TRAY, BATTERY | 1 | |
| 15 | 50386-130-690 | CUSHION C, BATTERY | 1 | |
| 16 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 17 | 92301-06012-0A | BOLT RECESSED 6X12 | 1 | |
| 18 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 3 | |
| 19 | 98200-32000 | BLADE, FUSE, 20A | 1 | |
| 21 | 50388-KTE-910 | TUBE, BATTERY TRAY | 1 | |
| 24 | 32411-253-000 | COVER, STARTING MOTOR | 1 | |
| 25 | 90320-GC3-000 | NUT, SPRING, M5 | 1 | |
