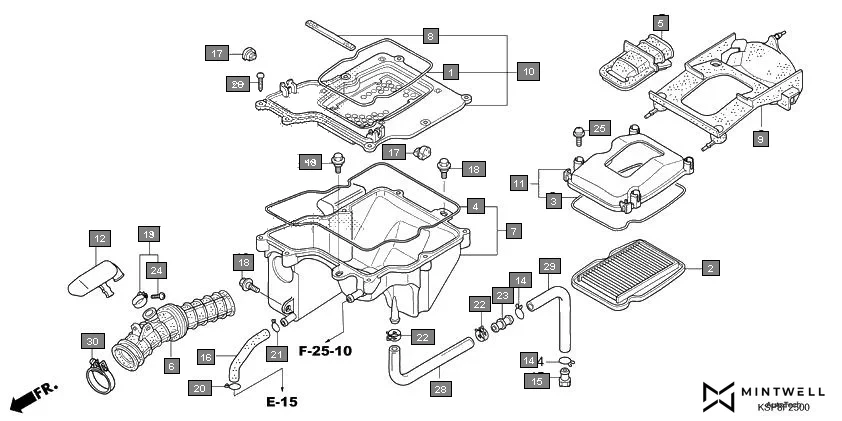

F-25 - AIR CLEANER
HONDA CB Unicorn CBF150MH · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17214-KSP-900 | SEAL, AIR CLEANER COVER | 1 | |
| 2 | 17211-KSP-B00 | ELEMENT COMP., AIR CLEANER | 1 | |
| 4 | 17215-KSP-900 | SEAL A AIR/C | 1 | |
| 5 | 17219-KSP-D00 | DUCT, AIR CLEANER | 1 | |
| 6 | 17222-KSP-900 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 7 | 17225-KSP-860 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 8 | 17233-KSP-900 | MAT, AIR CLEANER | 1 | |
| 9 | 17234-KSP-900 | COVER, AIR CLEANER DUCT | 1 | |
| 10 | 17235-KSP-900 | HOLDER SUB ASSY., AIR CLEANER | 1 | |
| 11 | 17245-KSP-900 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 12 | 17311-KSP-900 | RESONATOR | 1 | |
| 13 | 17312-KFN-880 | BAND, RESONATOR | 1 | |
| 14 | 17316-KWP-E00 | CLIP, BREATHER TUBE | 2 | |
| 15 | 17370-382-870 | PLUG, BREATHER TUBE | 1 | |
| 16 | 17371-KSP-900 | TUBE, BREATHER | 1 | |
| 17 | 77215-KSP-900 | RUBBER, CUSHION | 2 | |
| 18 | 90111-162-000 | BOLT, FLANGE, 6MM | 3 | |
| 20 | 90651-KM9-000 | CLIP B14 TUBE | 1 | |
| 21 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 22 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 2 | |
| 23 | 91463-393-780 | JOINT, TUBE | 1 | |
| 24 | 93500-04016-0G | SCREW PAN 4X16 | 1 | |
| 25 | 93893-05016-00 | SCREW WASHER 5X16 | 4 | |
| 26 | 93903-25480 | SCREW TAPPING 5X20 | 7 | |
| 28 | 95003-37023-31 | TUBE, VINYL, 11X15X230 (95003-37001-60M) | 1 | |
| 29 | 95005-12200-20 | TUBE, 12X200(95005-12001-20M) | 1 | |
| 30 | 95018-54250 | BAND, AIR CLEANER CONNECTING TUBE(54) | 1 | |
