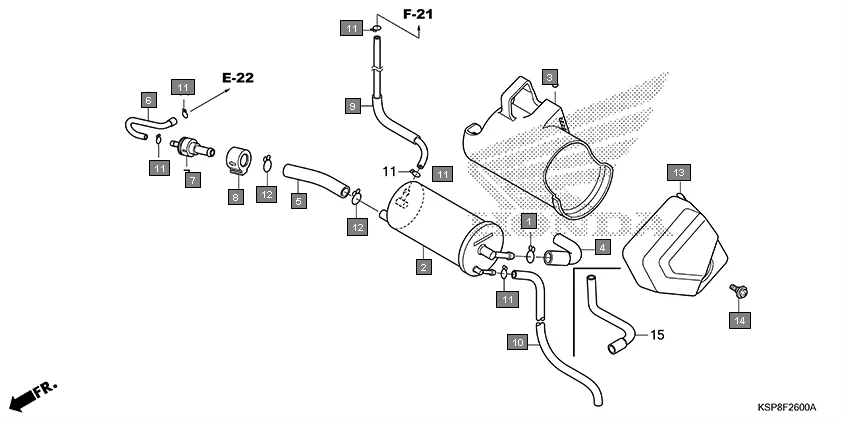

F-26 - CANISTER
HONDA CB Unicorn CBF150MH · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16163-K43-900 | CLIP | 1 | |
| 2 | 17310-K43-902 | CANISTER COMP | 1 | |
| 3 | 17311-KSP-D00 | RUBBER, CANISTER | 1 | |
| 4 | 17412-KSP-D00 | TUBE, AIR | 1 | |
| 5 | 95001-75065-40 | TUBE, FUEL, 7.5X65 (95001-75001-60M) | 1 | |
| 6 | 17417-KSP-D00 | TUBE, PURGE CARBURETOR | 1 | |
| 7 | 17440-K43-901 | VALVE, ONE WAY | 1 | |
| 8 | 17441-K43-900 | RUBBER, ONE WAY VALVE | 1 | |
| 9 | 17411-KSP-D00 | TUBE, CHARGE | 1 | |
| 10 | 95001-45585-40 | TUBE, 4.5X585(95001-45001-60M) | 1 | |
| 11 | 90652-KWP-F00 | CLIP, TUBE(B8) | 5 | |
| 12 | 90601-KWP-F00 | CLIP, TUBE(B12) | 2 | |
| 13 | 83650-KSP-D00 | COVER, L. CANISTER | 1 | |
| 14 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 1 | |
