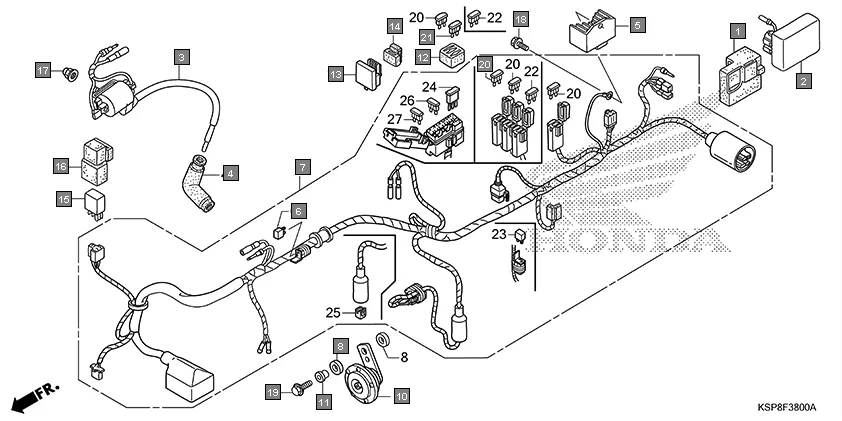

F-38 - WIRE HARNESS
HONDA CB Unicorn CBF150MH · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-KSP-911 | CUSHION, C.D.I. UNIT | 1 | |
| 2 | 30410-KSP-D01 | C.D.I. UNIT | 1 | |
| 3 | 30500-KSP-B11 | COIL ASSY., IGNITION | 1 | |
| 4 | 30700-KSP-B01 | CAP ASSY,NOISE SUPRESSOR | 1 | |
| 5 | 31600-KSP-861 | RECTIFIER COMP., REGULATOR | 1 | |
| 6 | 31700-HM5-630 | RECTIFIER ASSY., SILICON | 1 | |
| 7 | 32100-KSP-D00 | HARNESS, WIRE | 1 | |
| 8 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 10 | 38110-KWF-952 | HORN COMP | 1 | |
| 11 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 12 | 38201-KSP-910 | RUBBER, SPARE FUSE SETTING | 1 | |
| 13 | 38301-KVT-G01 | RELAY COMP., WINKER | 1 | |
| 14 | 38306-K14-931 | SUSPENSION, WINKER RELAY (STAR ENGINEERS) | 1 | |
| 15 | 38502-KSP-910 | RELAY COMP., POWER (MICRO ISO 5P) | 1 | |
| 16 | 38506-KSP-910 | SUS., POWER RELAY | 1 | |
| 17 | 90201-415-000 | NUT, CAP, 6MM | 1 | |
| 19 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 20 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
