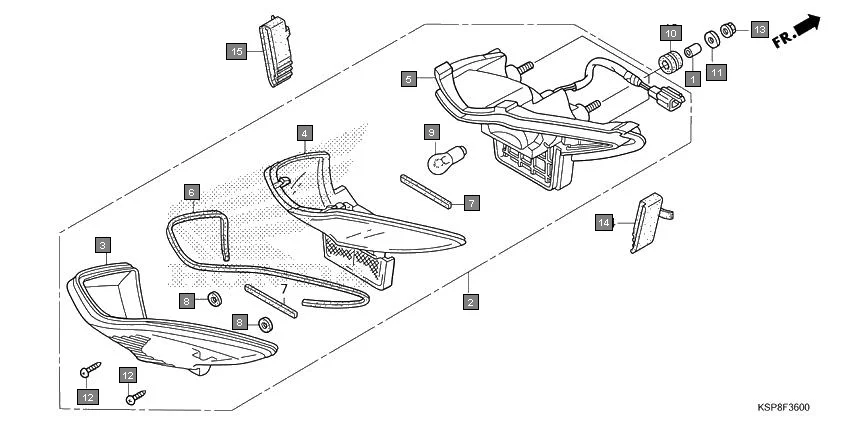

F-36 - TAILLIGHT
HONDA CB Unicorn CBF150MH · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33603-053-650 | COLLAR, RR. WINKER | 3 | |
| 2 | 33701-KSP-D01 | TAILLIGHT UNIT(12V 21/5W) | 1 | |
| 3 | 33702-KSP-911 | LENS, TAILLIGHT | 1 | |
| 4 | 33703-KSP-911 | LENS COMP., TAILLIGHT INNER | 1 | |
| 5 | 33710-KSP-911 | BASE COMP., TAILLIGHT | 1 | |
| 6 | 33715-KSP-911 | PACKING(1) | 1 | |
| 7 | 33716-KSP-911 | PACKING(2) | 2 | |
| 8 | 33717-KSP-911 | PACKING(3) | 2 | |
| 9 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 10 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 3 | |
| 11 | 90563-355-000 | WASHER, WHEEL, 6 MM | 3 | |
| 12 | 93901-24480 | SCREW, TAPPING, 4 X 16 | 2 | |
| 14 | 33731-KSP-900 | RUBBER, R. TAILLIGHT MOUNTING | 1 | |
| 15 | 33732-KSP-900 | RUBBER, L. TAILLIGHT MOUNTING | 1 | |
