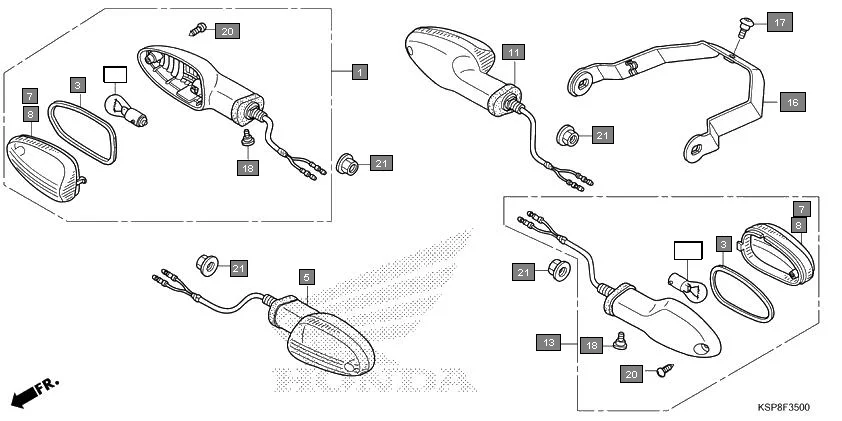

F-35 - WINKER
HONDA CB Unicorn CBF150MH · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-KSP-B11 | WINKER ASSY., R. FR.(12V 21W) | 1 | |
| 3 | 33406-KTE-931 | SEAL, GASKET | 4 | |
| 5 | 33450-KSP-B11 | WINKER ASSY., L. FR.(12V 21W) | 1 | |
| 7 | 33402-KTE-931 | LENS, R. WINKER (R. FR./R. RR.) | 2 | |
| 8 | 33452-KTE-931 | LENS, L. WINKER (L. FR./L. RR.) | 2 | |
| 11 | 33600-KSP-B11 | WINKER ASSY., R. RR.(12V 21W) | 1 | |
| 13 | 33650-KSP-B11 | WINKER ASSY., L. RR.(12V 21W) | 1 | |
| 15 | 34904-KRY-971 | BULB, WINKER LIGHT | 4 | |
| 15 | 34904-KTE-920 | BULB, WINKER(AMBER)(12V 21W)(PY21W) | 4 | |
| 15 | 34904-KTE-910 | BULB, WINKER(AMBER)(12V 21W) | 4 | |
| 15 | 34904-KTP-901 | BULB, WINKER LIGHT(12V 21W)(AMBER) | 4 | |
| 16 | 50186-KSP-860 | STAY, RR. WINKER | 1 | |
| 17 | 90106-MM4-000 | SCREW, PAN, 6X14 | 1 | |
| 18 | 90380-MB2-000 | SCREW, SPECIAL, 6 X 8 | 4 | |
| 20 | 93903-34380 | SCREW, TAPPING, 4X12 | 4 | |
