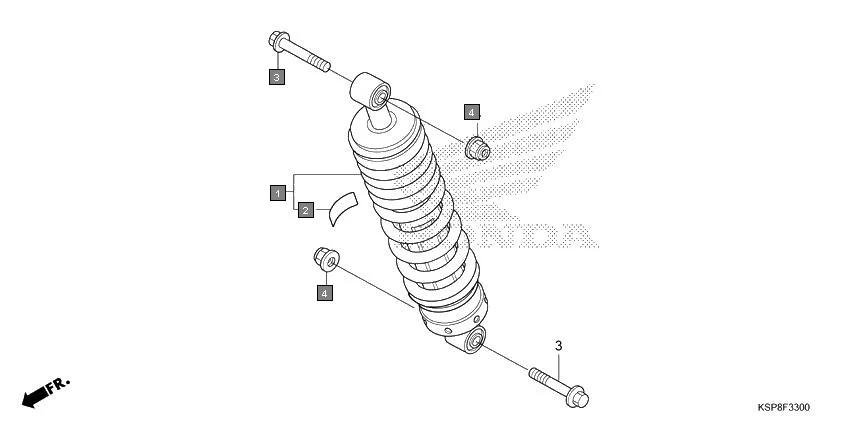

F-33 - REAR CUSHION
HONDA CB Unicorn CBF150MH · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-KSP-A71 | CUSHION ASSY., RR. | 1 | |
| 2 | 87516-KSP-861 | LABEL, RR. DAMPER | 1 | |
| 3 | 90151-KSP-900 | BOLT, FLANGE, 10X48 | 2 | |
| 4 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 2 | |
