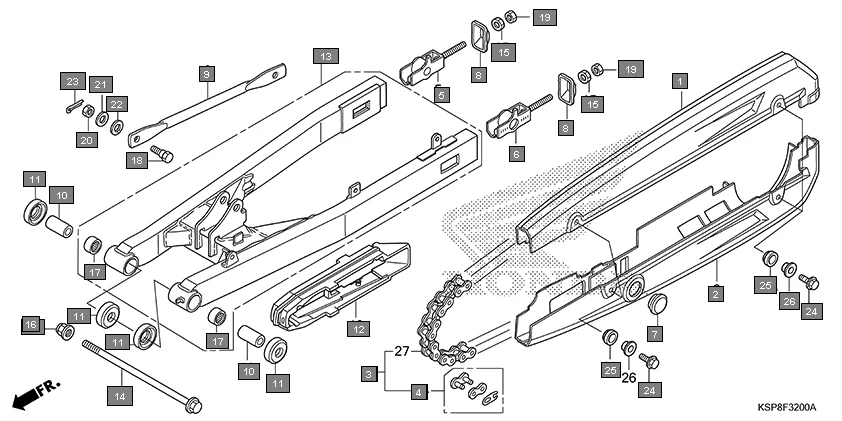

F-32 - SWINGARM
HONDA CB Unicorn CBF150MH · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-KSP-860ZA | CASE, UPPER HALF DRIVE CHAIN *NH229MU* ANCHOR GRAY METALLIC-U | 1 | |
| 2 | 40520-KSP-860ZA | CASE, UNDER HALF DRIVE CHAIN *NH229MU* ANCHOR GRAY METALLIC-U | 1 | |
| 3 | 40530-KSP-901 | CHAIN, DRIVE(428H-126)(T.I.D.) | 1 | |
| 3 | 40530-KSP-902 | CHAIN, DRIVE(428H-126)(L.G.B.) | 1 | |
| 4 | 40531-KSP-902 | JOINT, DRIVE CHAIN(L.G.B.) | 1 | |
| 4 | 40531-KSP-901 | JOINT, DRIVE CHAIN(T.I.D.) | 1 | |
| 5 | 40543-KSP-900 | ADJUSTER, R. CHAIN | 1 | |
| 6 | 40544-KSP-900 | ADJUSTER, L. CHAIN | 1 | |
| 7 | 40545-001-000 | CAP, CHAIN PEEP HOLE | 1 | |
| 8 | 40546-KR1-760 | CAP, RR. FORK END | 2 | |
| 9 | 43431-KSP-860 | ARM, RR. BRAKE STOPPER | 1 | |
| 10 | 52141-KSP-900 | COLLAR, SWINGARM PIVOT | 2 | |
| 11 | 52144-GC4-003 | DUST SEAL, 31X40.5X7.1(ARAI) | 4 | |
| 12 | 52170-KSP-860 | SLIDER, CHAIN | 1 | |
| 13 | 52200-KSP-860ZA | SWINGARM SUB ASSY., RR. *NH1* BLACK | 1 | |
| 14 | 90121-KSP-900 | BOLT, SWINGARM PIVOT | 1 | |
| 15 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
| 17 | 91071-KSP-901 | BEARING, NEEDLE, 20X26X20 | 2 | |
| 18 | 92812-10000 | BOLT A BRAKE STOPPER ARM | 1 | |
| 21 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 22 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
| 25 | 90512-KSP-860 | RUBBER, CHAIN CASE SETTING | 4 | |
| 26 | 90522-KSP-860 | COLLAR, CHAIN CASE SETTING | 4 | |
