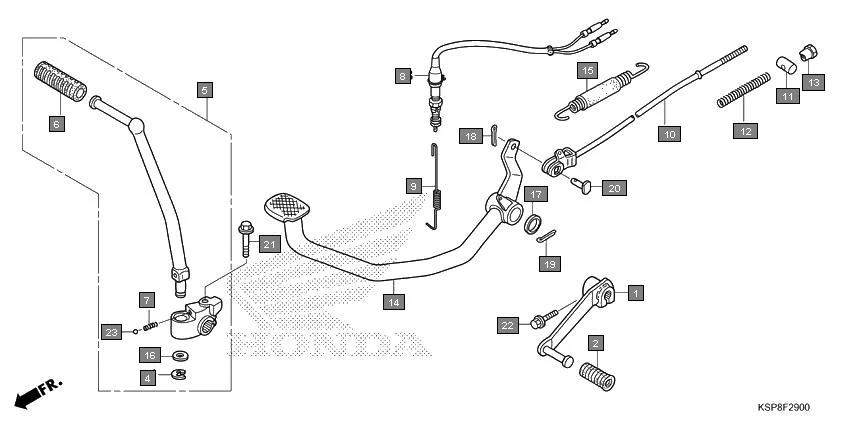

F-29 - PEDAL
HONDA CB Unicorn CBF150MH · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-KSP-A70 | PEDAL, GEAR CHANGE | 1 | |
| 2 | 24781-KSP-860 | RUBBER, CHANGE PEDAL | 1 | |
| 4 | 28293-333-000 | CLIP, KICK STARTER ARM | 1 | |
| 5 | 28300-KSP-A70 | ARM ASSY., KICK STARTER | 1 | |
| 6 | 28311-KC5-000 | STARTER RUBBER, KICK | 1 | |
| 7 | 28333-KK0-000 | SPRING, KICK STARTER ARM SET | 1 | |
| 8 | 35350-KSP-D01 | SWITCH ASSY., RR. STOP | 1 | |
| 9 | 35357-KSP-900 | SPRING, STOP SWITCH | 1 | |
| 10 | 43451-KSP-900 | ROD COMP., RR. BRAKE | 1 | |
| 11 | 43455-KSP-900 | JOINT BRAKE ARM | 1 | |
| 12 | 43456-KSP-900 | SPRING BRAKE ROD | 1 | |
| 13 | 43459-KSP-900 | NUT RR. BRK. ADJUST | 1 | |
| 14 | 46500-KSP-901 | PEDAL, BRAKE | 1 | |
| 15 | 46510-K21-900 | SPRING SET, BRAKE PEDAL | 1 | |
| 16 | 90505-KRM-860 | WASHER, 15.5 X 22 | 1 | |
| 17 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 18 | 94201-20120 | PIN, SPLIT, 2.0X12 | 1 | |
| 19 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 20 | 95015-53000 | PIN, C JOINT | 1 | |
| 21 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 23 | 96211-08000 | BALL STEEL 8 MM | 1 | |
