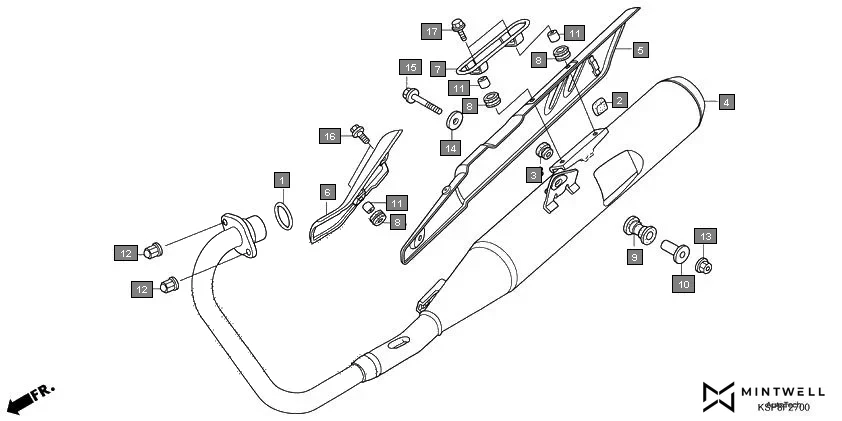

F-27 - EXHAUST MUFFLER
HONDA CB Unicorn CBF150MH · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18291-KSP-901 | GASKET, EX. PIPE | 1 | |
| 2 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 1 | |
| 3 | 18294-KRY-900 | RUBBER, PROTECTOR MOUNTING | 1 | |
| 4 | 18300-KSP-D00 | MUFFLER COMP., EX. | 1 | |
| 5 | 18311-KSP-D00 | COVER COMP., FR. MUFFLER | 1 | |
| 6 | 18312-KSP-D00 | COVER, MUFFLER | 1 | |
| 7 | 18317-KSP-901 | PROTECTOR, MUFFLER | 1 | |
| 8 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 3 | |
| 9 | 18421-438-670 | RUBBER, MUFFLER MOUNT | 1 | |
| 10 | 18442-KRC-900 | COLLAR, MUFFLER MOUNT | 1 | |
| 11 | 33619-459-840 | COLLAR, WINKER STAY | 3 | |
| 12 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 13 | 94050-10000 | NUT, FLANGE, 10MM | 1 | |
| 14 | 94103-10000 | WASHER, PLAIN, 10MM | 1 | |
| 15 | 95801-10055-00 | BOLT, FLANGE, 10X55 | 1 | |
| 16 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 2 | |
| 17 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 2 | |
