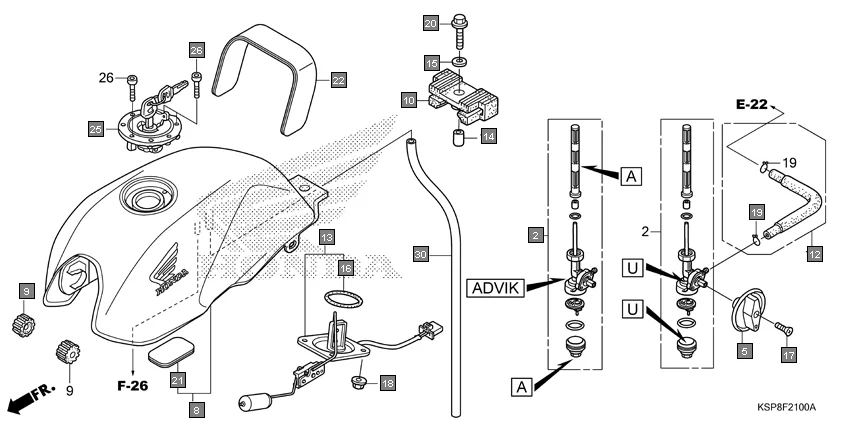

F-21 - FUEL TANK
HONDA CB Unicorn CBF150MH · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 16950-KSP-900 | COCK ASSY., FUEL | 1 | |
| 2 | 16950-KSP-901 | COCK ASSY., FUEL (UCAL) | 1 | |
| 2 | 16950-KSP-902 | COCK ASSY., FUEL (ADVIK) | 1 | |
| 5 | 16955-KSP-900 | LEVER, FUEL COCK | 1 | |
| 8 | 17530-KSP-D00ZA | TANK SUB ASSY., FUEL(WL) *R320P* PEARL SIENA RED | 1 | |
| 8 | 17530-KSP-D00ZB | TANK SUB ASSY., FUEL(WL) *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 8 | 17530-KSP-D00ZC | TANK SUB ASSY., FUEL(WL) *NHA04M* GENY GRAY METALLIC | 1 | |
| 9 | 17611-KFN-850 | CUSHION, FR. FUEL TANK | 2 | |
| 10 | 17613-KSP-900 | CUSHION, FUEL TANK RR. | 1 | |
| 12 | 17681-KSP-861 | TUBE, FUEL | 1 | |
| 13 | 37080-KSP-860 | FUEL UNIT SET | 1 | |
| 14 | 80101-KFN-850 | COLLAR, 8X12 | 1 | |
| 15 | 90534-MV4-000 | WASHER ,8.5X28 | 1 | |
| 16 | 91305-443-740 | O RING, 39.5 X 5 | 1 | |
| 17 | 93500-04025-0G | SCREW, PAN, 4X25 | 1 | |
| 18 | 94050-06000 | NUT, FLANGE, 6 MM | 4 | |
| 19 | 90653-KSP-D00 | CLIP, TUBE(B10) | 2 | |
| 20 | 95701-08025-08 | BOLT, FLANGE, 8X25 | 1 | |
| 21 | 17504-KSP-860 | FILM, TANK PROTECTOR | 1 | |
| 22 | 17519-KSP-860 | PROTECTOR, FUEL TANK | 1 | |
| 25 | 17620-KSP-862 | CAP COMP., FUEL FILLER | 1 | |
| 26 | 90111-KSP-860 | BOLT, SOCKET, 4X21 | 3 | |
| 30 | 95005-80700-20 | TUBE, 8X700(95005-80001-20M) | 1 | |
