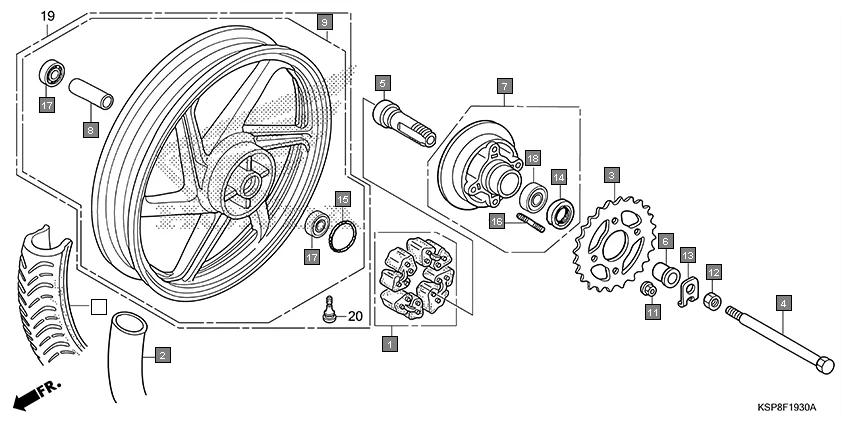

F-19-30 - REAR WHEEL
HONDA CB Unicorn CBF150MH · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-KSP-900 | DAMPER SET, WHEEL | 1 | |
| 2 | 06427-KSP-870 | TUBE SET, TUFF UP | 1 | |
| 3 | 41201-KVE-900 | SPROCKET, FINAL DRIVEN (43T) | 1 | |
| 4 | 42301-KSP-900 | AXLE, RR. WHEEL | 1 | |
| 5 | 42303-KSP-900 | SLEEVE, RR. WHEEL AXLE | 1 | |
| 6 | 42311-KSP-900 | COLLAR, RR. WHEEL SIDE | 1 | |
| 7 | 42615-KSP-930 | FLANGE SUB ASSY., FINAL DRIVEN | 1 | |
| 8 | 42620-KSP-900 | COLLAR, REAR AXLE DISTANCE | 1 | |
| 9 | 42650-KSP-870 | WHEEL SUB ASSY., RR. | 1 | |
| 10 | 42711-KFN-852 | TIRE, RR.(MRF)(100/90-18 56P) | 1 | |
| 12 | 90307-KSP-900 | NUT, RR. AXLE SLEEVE | 1 | |
| 13 | 90559-KSP-900 | WASHER, L. RR. AXLE | 1 | |
| 14 | 91253-KSP-901 | DUST SEAL, 30 X 47 X 8 | 1 | |
| 15 | 91352-KSP-900 | O RING, 51 X 2 | 1 | |
| 16 | 92915-10025-0E | BOLT, STUD II, 10X25 | 4 | |
| 17 | 96140-63020-10 | BRG., BALL RADIAL, 6302 (U) | 2 | |
| 18 | 96150-60050-10 | BEARING, BALL RADIAL, 6005 | 1 | |
