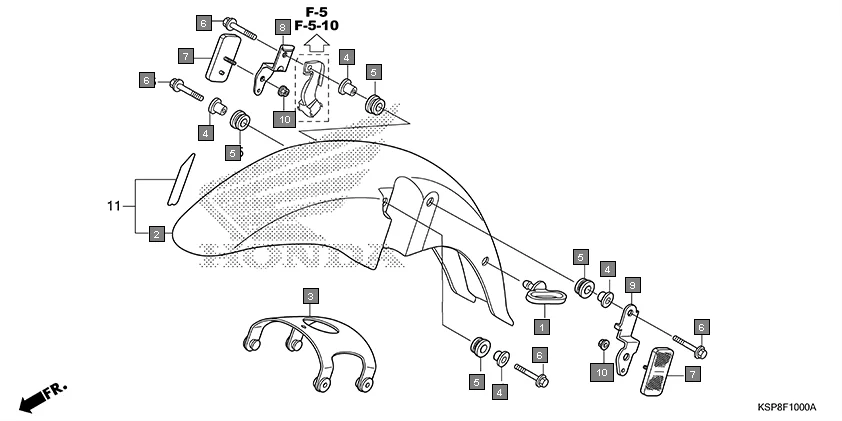

F-10 - FRONT FENDER
HONDA CB Unicorn CBF150MH · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45451-473-000 | GUIDE, FR. FENDER CABLE | 1 | |
| 2 | 61100-KSP-860ZG | FENDER, FR. *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 2 | 61100-KSP-860ZK | FENDER, FR. *R320P* PEARL SIENA RED | 1 | |
| 2 | 61100-KSP-860ZM | FENDER, FR *NHA04M* GENY GRAY METALLIC | 1 | |
| 3 | 61102-KSP-D00 | STAY, FR. FENDER | 1 | |
| 4 | 61103-KRY-900 | COLLAR, A FR.FENDER | 4 | |
| 5 | 61105-KRY-900 | RUBBER, FR.FENDER MTG. | 4 | |
| 6 | 96001-06032-00 | BOLT, FLANGE, SH., 6 X 32 | 4 | |
| 7 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 8 | 33742-KSP-D10 | STAY, R. FR. REFLECTOR | 1 | |
| 9 | 33743-KSP-D10 | STAY, L. FR. REFLECTOR | 1 | |
| 10 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
