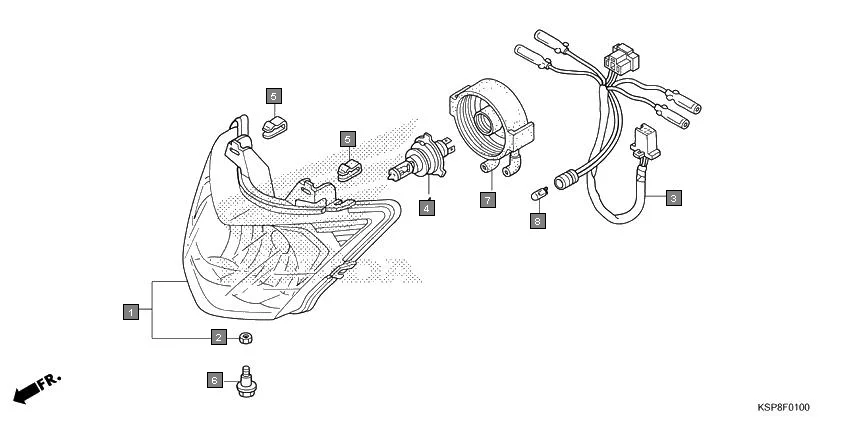

F-1 - HEADLIGHT
HONDA CB Unicorn CBF150MH · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33110-KSP-D01 | HEADLIGHT UNIT | 1 | |
| 2 | 33128-GBL-003 | NUT, SPECIAL | 1 | |
| 3 | 33150-KSP-D01 | SOCKET ASSY., HEADLIGHT | 1 | |
| 4 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 5 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 6 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
| 7 | 33112-KSP-911 | COVER, RUBBER | 1 | |
| 8 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
