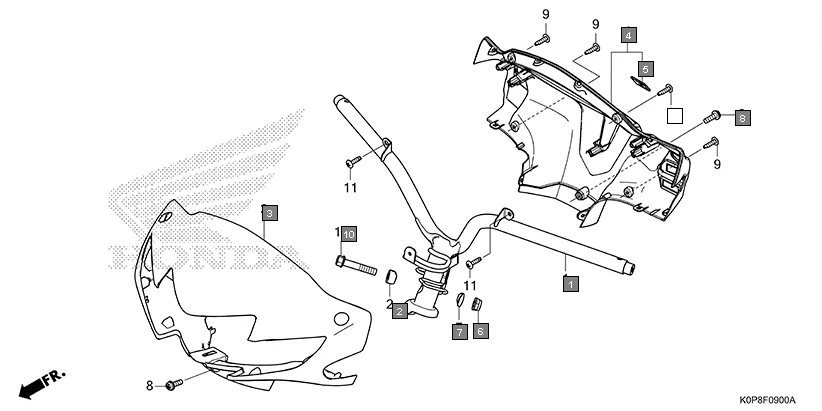

F-9 - STEERING HANDLE/HANDLE COVER
HONDA Activa SCV110P/SR · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-K0P-D00 | HANDLE COMP., STEERING | 1 | |
| 2 | 53124-KWP-900 | COLLAR HANDLE SET | 1 | |
| 3 | 53205-K0P-D00ZC | COVER, HANDLE FR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 3 | 53205-K0P-D00ZD | COVER, HANDLE FR. *NH1* BLACK | 1 | |
| 3 | 53205-K0P-D00ZP | COVER, HANDLE FR. *NHC41P* PEARL PRECIOUS WHITE | 1 | |
| 3 | 53205-K0P-D00ZQ | COVER, HANDLE FR. *B236M* DECENT BLUE METALLIC | 1 | |
| 3 | 53205-K0P-D00ZS | COVER, HANDLE FR. *Y236M* DAZZLE YELLOW METALLIC 2 | 1 | |
| 3 | 53205-K0P-D00ZU | COVER, HANDLE FR.*R392P* PEARL SPARTAN RED 2 | 1 | |
| 4 | 53250-K0P-D00ZA | COVER COMP., HANDLE RR. *NH1* BLACK | 1 | |
| 5 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 7 | 90502-KWP-900 | COLLAR B HNDL SET | 1 | |
| 8 | 93891-05016-07 | SCREW WASH 5X16 | 2 | |
