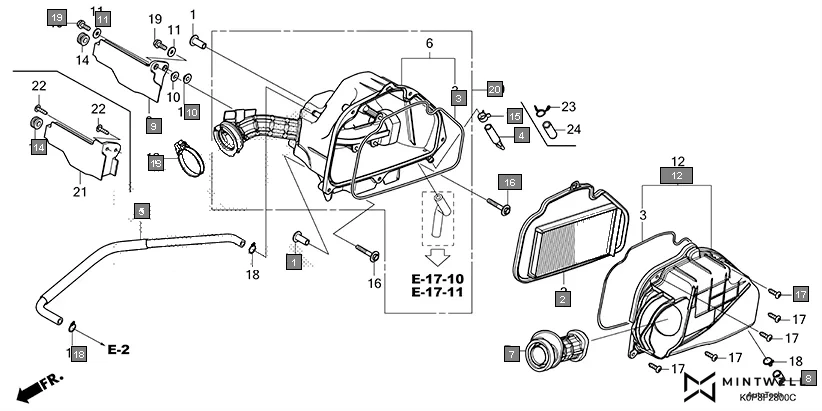

F-28 - AIR CLEANER
HONDA Activa SCV110P/SR · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17208-K0L-D00 | COLLAR, AIR CLEANER SETTING | 2 | |
| 2 | 17210-K0L-D00 | ELEMENT, AIR CLEANER | 1 | |
| 3 | 17212-K0L-D00 | SEAL, AIR CLEANER COVER | 2 | |
| 4 | 17216-KVT-G00 | TUBE, DRAIN | 1 | |
| 5 | 17218-K0L-D00 | TUBE, BREATHER | 1 | |
| 7 | 17232-K0P-D00 | DUCT, AIR CLEANER | 1 | |
| 8 | 17234-KCC-941 | TUBE, AIR CLEANER DRAIN | 1 | |
| 9 | 17236-K0L-D00 | BRACKET, AIR CLEANER | 1 | |
| 10 | 17237-K0L-D00 | COLLAR, BRACKET | 2 | |
| 11 | 17238-K0L-D00 | WASHER, BRACKET(6MM) | 2 | |
| 12 | 17245-K0P-D00 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 13 | 17255-K0L-D00 | BAND, AIR CLEANER CONNECTING TUBE(48) | 1 | |
| 14 | 83545-KCJ-690 | RUBBER, SIDE COVER | 1 | |
| 15 | 90602-KPL-900 | CLAMP, D12 TUBE | 1 | |
| 16 | 90109-K0L-D00 | BOLT-WASHER, 6X42 | 2 | |
| 17 | 93903-25480 | SCREW TAPPING 5X20 | 5 | |
| 18 | 95002-02130 | CLIP B 12.5 TUBE | 3 | |
| 19 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 2 | |
