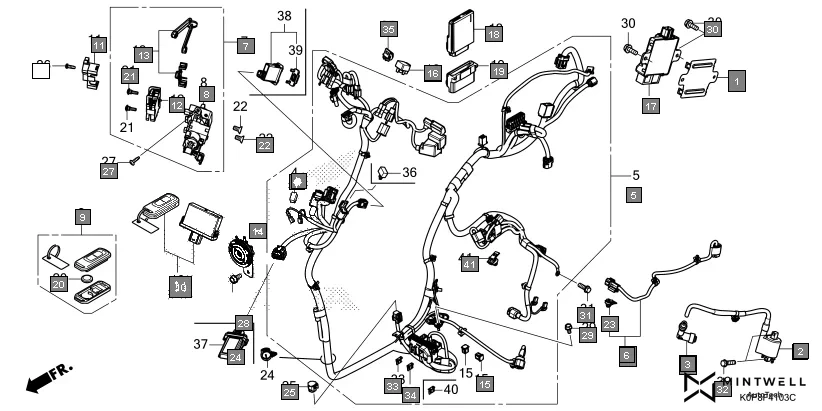

F-41-3 - WIRE HARNESS(SCV110P-9ID)
HONDA Activa SCV110P/SR · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 4 | 31700-124-008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 | |
| 4 | 31700-KTE-D01 | RECTIFIER ASSY., SILICON | 1 | |
| 5 | 32100-K0P-760 | HARNESS, WIRE | 1 | |
| 5 | 32100-K0P-DQ0 | HARNESS, WIRE | 1 | |
| 7 | 35100-K0P-D81 | SWITCH ASSY., HANDLE LOCK | 1 | |
| 8 | 35101-K0P-D81 | SWITCH COMP., HANDLE LOCK | 1 | |
| 9 | 35111-K0P-D81 | FOB ASSY. | 1 | |
| 10 | 35141-K0P-D81 | CONTROL UNIT SET, SMART | 1 | |
| 11 | 35191-K2C-V11 | COVER, CABLE | 1 | |
| 12 | 35193-K0P-D81 | SWITCH ASSY., SEAT OPENER | 1 | |
| 13 | 35194-K2C-V11 | KEY SET, EMERGENCY | 1 | |
| 18 | 38770-K0P-DQ1 | PGM-FI UNIT | 1 | |
| 20 | 72148-S04-000 | BATTERY(CR2032)(MAXELL) | 1 | |
| 21 | 90101-K2C-V11 | SCREW, OPENER SET | 2 | |
