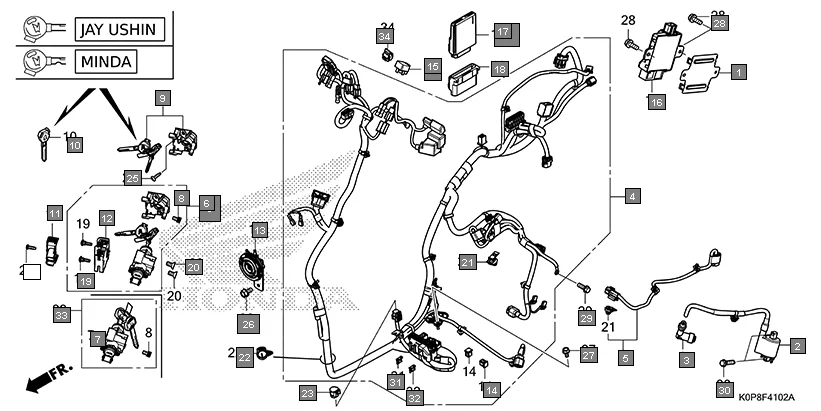

F-41-2 - WIRE HARNESS(SCV110P-7ID,8ID)
HONDA Activa SCV110P/SR · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-K0P-D60 | COVER, A.C. GENERATOR STARTER CONTROL UNIT | 1 | |
| 3 | 30700-K0P-D61 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 4 | 32100-K0P-740 | HARNESS, WIRE | 1 | |
| 4 | 32100-K0P-DN0 | HARNESS, WIRE | 1 | |
| 4 | 32100-K0P-750 | HARNESS, WIRE | 1 | |
| 4 | 32100-K0P-DP0 | HARNESS, WIRE | 1 | |
| 5 | 32105-K0P-700 | SUB HARNESS, ENGINE | 1 | |
| 5 | 32105-K0P-D60 | SUB HARNESS, ENGINE | 1 | |
| 6 | 35010-K0L-D60 | KEY SET | 1 | |
| 14 | 38211-SNA-A21 | FUSE, BLOCK(40A) | 2 | |
| 16 | 38760-K0P-D71 | CONTROL UNIT, A.C. GENRATOR STARTER | 1 | |
| 16 | 38760-K0P-D61 | CONTROL UNIT, A.C. GENRATOR STARTER | 1 | |
| 17 | 38770-K0P-DN1 | PGM-FI UNIT | 1 | |
| 17 | 38770-K0P-DP1 | PGM-FI UNIT | 1 | |
| 18 | 38771-K0P-D60 | CUSHION, PGM-FI UNIT | 1 | |
| 25 | 93903-24410 | SCREW, TAPPING, 4X16 | 1 | |
| 31 | 98200-40750 | FUSE, MINI(7.5A) | 5 | |
| 32 | 98200-41500 | FUSE, MINI(15A) | 2 | |
| 33 | 35102-K0L-D61 | SWITCH ASSY. SET, COMBINATION & LOCK | 1 | |
