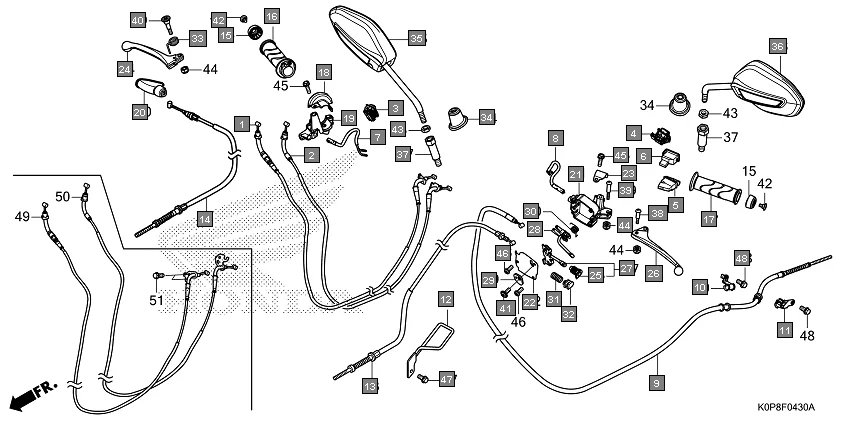

F-4-30 - HANDLE LEVER/SWITCH/CABLE
HONDA Activa SCV110P/SR · 59 parts
Parts in This Assembly (59)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K0L-D01 | CABLE COMP. A, THROTTLE (HI-LEX) | 1 | |
| 1 | 17910-K0L-601 | CABLE COMP. A, THROTTLE. | 1 | |
| 2 | 17920-K0L-601 | CABLE COMP. B, THROTTLE | 1 | |
| 2 | 17920-K0L-D01 | CABLE COMP. B, THROTTLE (HI-LEX) | 1 | |
| 3 | 35130-K0P-D01 | SWITCH UNIT, STARTER & ENGINE STOP(JAY USHIN) | 1 | |
| 3 | 35130-K0L-D01 | SWITCH UNIT, STARTER & ENGINE STOP(MINDA) | 1 | |
| 4 | 35170-K0P-D01 | SWITCH UNIT, DIMMER & PASSING (JAY USHIN) | 1 | |
| 4 | 35170-K0L-D01 | SWITCH UNIT, DIMMER & PASSING (MINDA) | 1 | |
| 5 | 35180-KWP-D21 | SWITCH UNIT, HORN(MINDA) | 1 | |
| 5 | 35180-KWP-901 | SWITCH, UNIT HORN | 1 | |
| 6 | 35200-KVT-911 | SWITCH, UNIT WINKER | 1 | |
| 6 | 35200-KWP-901 | SWITCH UNIT, WINKER(MINDA) | 1 | |
| 7 | 35340-K0L-D01 | SWITCH ASSY., FR. STOP | 1 | |
| 8 | 35340-KWP-911 | SWITCH ASSY., FR. STOP | 1 | |
| 9 | 43450-K0L-D01 | CABLE COMP., RR. BRAKE(HI-LEX) | 1 | |
| 9 | 43450-K0L-D02 | CABLE COMP., RR. BRAKE(SEL) | 1 | |
| 9 | 43450-K0P-D01 | CABLE COMP., RR. BRAKE(ASK) | 1 | |
| 10 | 43455-K0L-D00 | CLAMPER A, RR. BRAKE CABLE | 1 | |
| 11 | 43456-K0L-D00 | CLAMPER B, RR. BRAKE CABLE | 1 | |
| 12 | 45160-K0L-D00 | GUIDE COMP., BRAKE CABLE | 1 | |
| 13 | 45440-K86-D31 | CABLE COMP., L. FR. BRAKE(ASK) | 1 | |
| 13 | 45440-K86-D32 | CABLE COMP., L. FR. BRAKE(SEL) | 1 | |
| 13 | 45440-K86-D33 | CABLE COMP., L. FR. BRAKE (HI-LEX) | 1 | |
| 14 | 45450-K86-D31 | CABLE COMP., R. FR. BRAKE(ASK) | 1 | |
| 14 | 45450-K86-D32 | CABLE COMP., R. FR. BRAKE(SEL) | 1 | |
| 14 | 45450-K86-D33 | CABLE COMP., R. FR. BRAKE (HI-LEX) | 1 | |
| 15 | 53102-K0L-D00 | COVER, HANDLE END | 2 | |
| 16 | 53140-K44-V00 | GRIP COMP., THROTTLE | 1 | |
| 17 | 53166-KWB-600 | GRIP, L. HANDLE | 1 | |
| 18 | 53167-K0L-D00 | HOUSING, UPPER THROTTLE | 1 | |
| 19 | 53168-K0L-D00 | HOUSING, UNDER THROTTLE | 1 | |
| 20 | 53171-KCC-900 | COVER R HANDLE LEVER | 1 | |
| 21 | 53172-KWP-910 | BRACKET L BRAKE LEVER | 1 | |
| 22 | 53173-KWP-910 | COVER L BRK LEVER BRKT | 1 | |
| 23 | 53173-K24-G00 | BAND, HANDLE BRACKET | 1 | |
| 24 | 53175-KWP-D00 | LEVER, R. STEERING HANDLE | 1 | |
| 25 | 53176-GBL-870 | BOOT BRKT LEVER ROD | 1 | |
| 26 | 53178-KWP-D00 | LEVER, L. STEERING HANDLE | 1 | |
| 27 | 53180-KWP-910 | EQUALIZER COMP | 1 | |
| 28 | 53185-KWP-910 | ARM COMP RR BRK LOCK | 1 | |
| 29 | 53186-GBL-870 | COVER RR. BRK LOCK LEVER | 1 | |
| 30 | 53186-KWP-910 | SPG BRK LOCK ARM RETURN | 1 | |
| 31 | 53188-K24-900 | SPRING, DELAY | 1 | |
| 32 | 53189-K24-900 | STOPPER, EQUALIZER | 1 | |
| 33 | 53199-KZN-910 | SPG R LEVER RETURN | 1 | |
| 34 | 88113-K0P-D00 | CAP, MIRROR LOCK NUT | 2 | |
| 35 | 88210-K0P-D00ZA | MIRROR COMP., R. *NH1* BLACK | 1 | |
| 36 | 88220-K0P-D00ZA | MIRROR COMP., L. *NH1* BLACK | 1 | |
| 37 | 90102-KWP-H00 | BOLT, ADAPTER, 8MM | 2 | |
| 38 | 90115-KPL-900 | SCREW, HNDL LEVER PIVOT | 1 | |
| 39 | 90115-KRP-980 | SCREW HNDL LEVER PIVOT | 1 | |
| 40 | 90115-KZN-910 | SCREW HNDL LEVER PIVOT | 1 | |
| 41 | 90118-KWP-910 | SCREW, PAN, 5X13 | 1 | |
| 42 | 90164-K66-V00 | SCREW, SPECIAL, 6MM | 2 | |
| 43 | 90201-KV3-680 | NUT, HEX., 8MM(L.H.) | 2 | |
| 44 | 90304-KPL-900 | NUT HEX 5 MM | 3 | |
| 45 | 93401-06020-00 | BOLT, WASHER, 6 X 20 | 2 | |
| 46 | 93500-05012-1H | SCREW, PAN, 5 X 12 | 2 | |
| 48 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 2 | |
