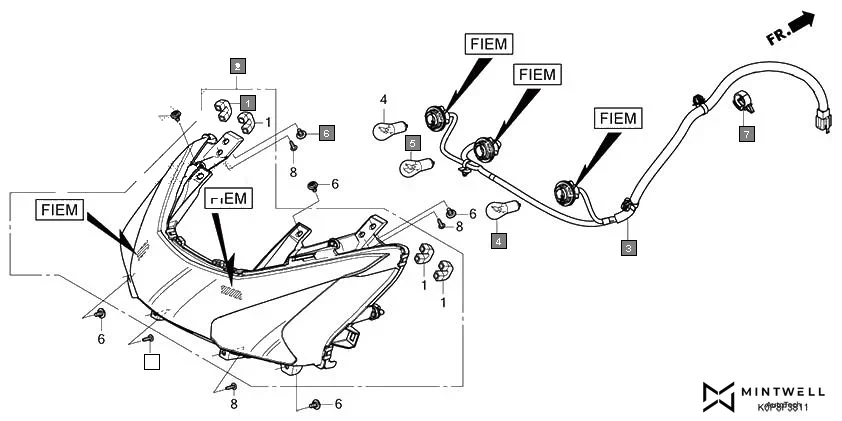

F-38-11 - REAR COMBINATION LIGHT(FIEM)
HONDA Activa SCV110P/SR · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33706-KWS-901 | TUBE | 4 | |
| 2 | 33710-K0P-D01 | LIGHT UNIT, RR. COMBINATION (FIEM) | 1 | |
| 3 | 33715-K0P-D01 | SOCKET COMP.(FIEM) | 1 | |
| 4 | 34904-KRY-971 | BULB, WINKER LIGHT | 2 | |
| 5 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 6 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 6 | |
| 7 | 91558-K0L-D01 | CLIP, WIRE HARNESS | 1 | |
| 8 | 93903-34480 | SCREW, TAPPING, 4X 16 | 4 | |
