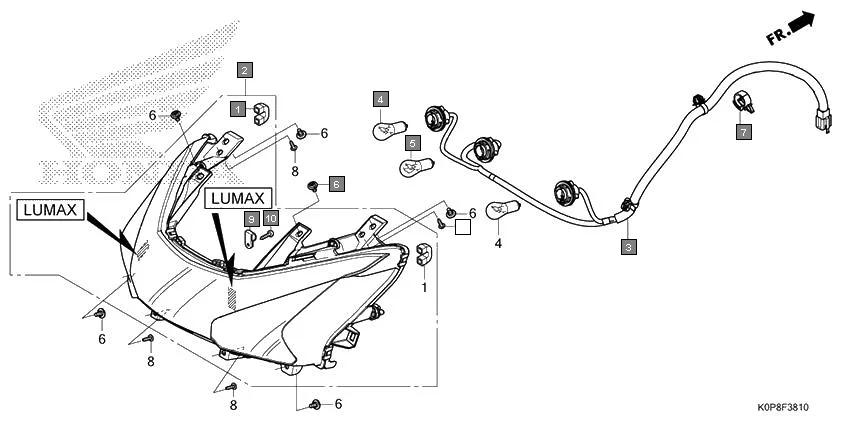

F-38-10 - REAR COMBINATION LIGHT(LUMAX)
HONDA Activa SCV110P/SR · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33706-K43-901 | TUBE | 2 | |
| 2 | 33710-K0P-601 | LIGHT UNIT, RR. COMBINATION (LUMAX) | 1 | |
| 3 | 33715-K0P-601 | SOCKET COMP.(LUMAX) | 1 | |
| 9 | 32920-KWP-F02 | CLIP A, HARNESS | 1 | |
| 10 | 93901-34410 | SCREW, TAPPING, 4X16 | 1 | |
