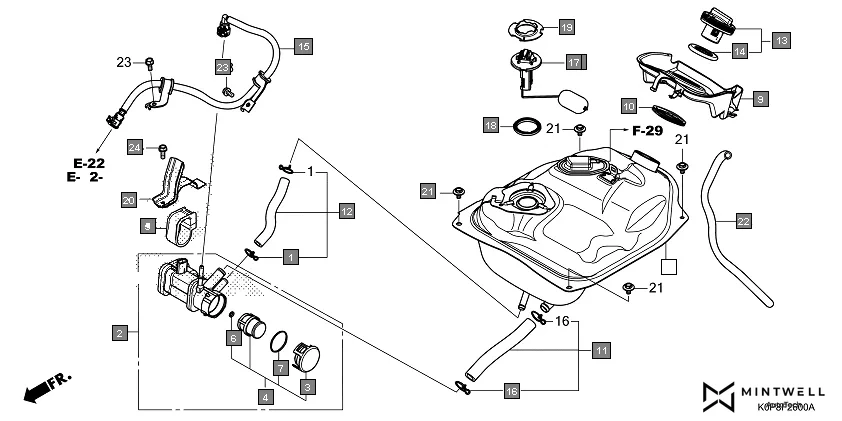

F-26 - FUEL TANK/FUEL PUMP
HONDA Activa SCV110P/SR · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15771-KV6-000 | CLIP, OIL DRAIN TUBE | 2 | |
| 2 | 16700-K0P-D01 | PUMP UNIT ASSY., FUEL | 1 | |
| 3 | 16703-K0L-D01 | CAP, FILTER | 1 | |
| 4 | 16707-K0L-D01 | FILTER SET | 1 | |
| 5 | 16711-K0L-D00 | RUBBER, FUEL PUMP | 1 | |
| 6 | 16715-K0L-D01 | O-RING, FILTER | 1 | |
| 7 | 16717-K0L-D01 | O-RING, FILTER CASE | 1 | |
| 8 | 17500-K0L-D00 | TANK COMP., FUEL | 1 | |
| 8 | 17500-K0L-600 | TANK COMP., FUEL | 1 | |
| 9 | 17505-K0P-D00 | TRAY, FUEL | 1 | |
| 10 | 17506-K0L-D00 | RUBBER, FUEL SEAL | 1 | |
| 11 | 17541-K0L-D00 | TUBE ASSY., FUEL FEED | 1 | |
| 12 | 17542-K0L-D00 | TUBE ASSY., FUEL RETURN | 1 | |
| 13 | 17620-K0L-D00 | CAP COMP., FUEL FILLER | 1 | |
| 14 | 17632-383-831 | PACKING , FUEL FILLTER CAP | 1 | |
| 15 | 17650-K0L-D01 | HOSE COMP., FUEL FEED | 1 | |
| 16 | 17724-K0L-D00 | CLIP, TUBE(B17.5) | 2 | |
| 17 | 37800-K0P-601 | FUEL UNIT(PRICOL) | 1 | |
| 17 | 37800-K0P-D01 | FUEL UNIT(NIPPON SEIKI) | 1 | |
| 18 | 37801-GA7-700 | PACKING, BASE | 1 | |
| 19 | 37802-K0P-D00 | RETAINER, FUEL UNIT | 1 | |
| 20 | 83106-K0L-D00 | BAND COMP., FUEL PUMP | 1 | |
| 22 | 95003-23050-60 | TUBE, VINYL, 8X12X500 (95003-23001-60M) | 1 | |
