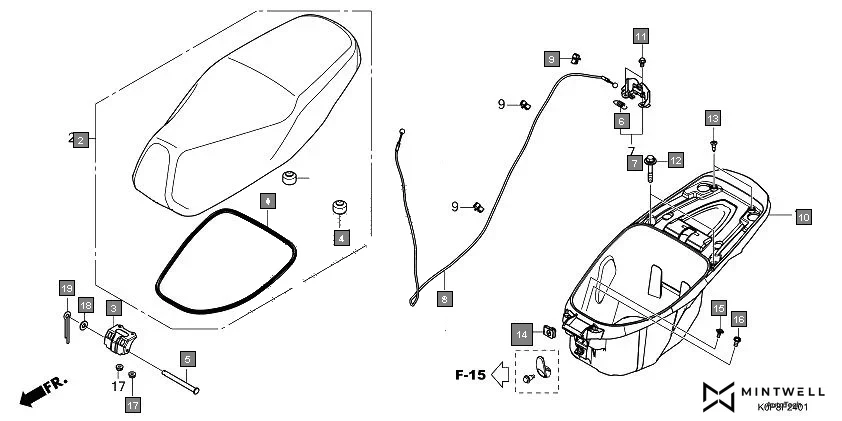

F-24-1 - SEAT/LUGGAGE BOX(SCV110N,P)
HONDA Activa SCV110P/SR · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77115-K0P-DA0 | RUBBER, SEAL | 1 | |
| 2 | 77200-K0P-DA2ZA | SEAT COMP., DOUBLE(TS TECH) *TYPE1*...................... | 1 | |
| 2 | 77200-K0P-DB2ZA | SEAT COMP., DOUBLE *TYPE1*...................... | 1 | |
| 2 | 77200-K0P-662ZA | *TYPE1*...................... | 1 | |
| 2 | 77200-K0P-732ZA | SEAT COMP., DOUBLE(VARROC) *TYPE1*...................... | 1 | |
| 2 | 77200-K0P-D92ZA | SEAT COMP., DOUBLE(TS TECH) *TYPE1*...................... | 1 | |
| 3 | 77201-K0P-D00 | HINGE, SEAT | 1 | |
| 4 | 77206-KG8-900 | RUBBER, SEAT SETTING | 2 | |
| 5 | 77215-K24-900 | PIN, SEAT HINGE | 1 | |
| 6 | 77234-K0P-DA0 | SPRING, SEAT LOCK | 1 | |
| 7 | 77235-K0P-DA2 | CATCH COMP., SEAT............. | 1 | |
| 8 | 77240-K0P-721 | CABLE COMP., SEAT LOCK | 1 | |
| 8 | 77240-K0P-D81 | CABLE COMP., SEAT LOCK | 1 | |
| 8 | 77240-K0P-661 | CABLE COMP., SEAT LOCK (HI-LEX) | 1 | |
| 8 | 77240-K0P-671 | CABLE COMP., SEAT LOCK (SUPRAJIT) | 1 | |
| 9 | 77243-K0L-D01 | CLIP A, SEAT LOCK CABLE | 3 | |
| 10 | 81250-K0P-DA1 | BOX, LUGGAGE.................. | 1 | |
| 11 | 90004-GHB-600 | BOLT, FLANGE, 6X10(NSHF) | 2 | |
| 12 | 90101-K0P-D00 | BOLT-WASHER, 8X50 | 2 | |
| 13 | 90116-SP0-003 | CLIP, BUMPER SEAL | 2 | |
| 14 | 90653-K0P-D00 | NUT, CLIP, 6MM | 1 | |
| 15 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 1 | |
| 16 | 93404-06012-07 | BOLT-WASHER, 6X12 | 2 | |
| 17 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 18 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 19 | 94201-16180 | PIN, SPLIT, 1.6X18 | 1 | |
