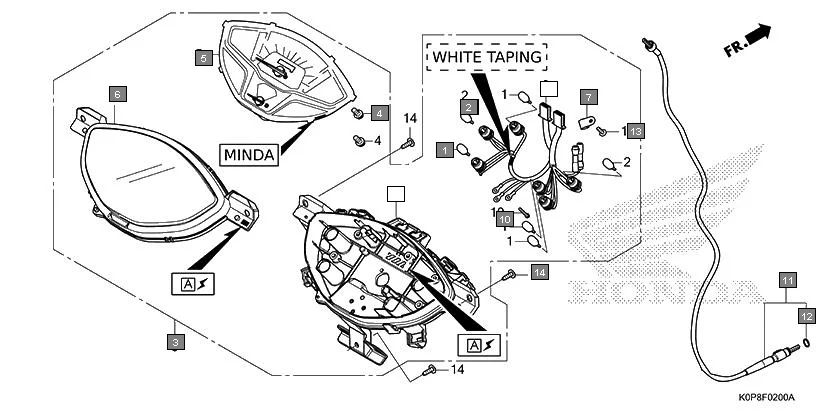

F-2 - METER(MINDA)
HONDA Activa SCV110P/SR · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-KVE-900 | BULB, WEDGE BASE T10 (12V - 1.7 W) | 3 | |
| 1 | 34910-KWA-930 | BULB WEDGE BASE (T10 12V, 1.7W) | 4 | |
| 2 | 34909-KVE-900 | BULB, WEDGE BASE (12V - 3 W) | 2 | |
| 2 | 34920-KWA-930 | BULB, WEDGE BASE(T10 12V 3W) | 2 | |
| 3 | 37200-K0P-601 | SPEEDOMETER ASSY.(MINDA) | 1 | |
| 4 | 37205-KWP-D21 | SCREW-WASHER, SPECIAL, 4X8 | 2 | |
| 5 | 37210-K0P-601 | METER COMP., SPEED & FUEL (MINDA) | 1 | |
| 6 | 37211-K0P-601 | METER COMP., SPEED & FUEL LENS(MINDA) | 1 | |
| 7 | 37215-KWP-D21 | CLAMP | 1 | |
| 8 | 37220-K0P-611 | CASE ASSY., LOWER(MINDA) | 1 | |
| 8 | 37220-K0P-601 | CASE ASSY., LOWER(MINDA) | 1 | |
| 9 | 37224-K0P-611 | SOCKET COMP.(MINDA) | 1 | |
| 9 | 37224-K0P-601 | SOCKET COMP.(MINDA) | 1 | |
| 10 | 37305-KWP-D21 | SCREW, 3X22 | 3 | |
| 11 | 44830-KVT-940 | CABLE COMP., SPEEDOMETER | 1 | |
| 12 | 91352-GAZ-930 | O-RING 8.5X11.5 | 1 | |
| 13 | 93903-24420 | SCREW,TAPPING,4 X 16 | 1 | |
