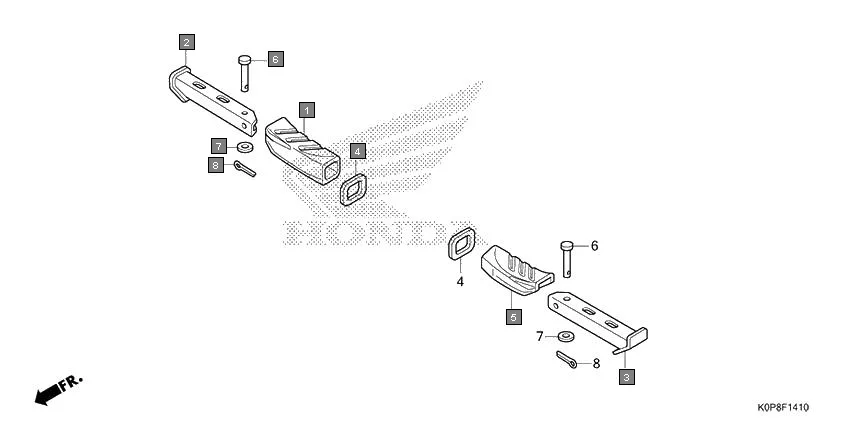

F-14-10 - PILLION STEP
HONDA Activa SCV110P/SR · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50710-KWP-E00 | RUBBER, R. PILLION STEP | 1 | |
| 2 | 50711-KWP-900 | BAR, R. PILLION STEP | 1 | |
| 3 | 50712-KWP-900 | BAR, L. PILLION STEP | 1 | |
| 4 | 50713-KWP-900 | WASHER, PILLION STEP | 2 | |
| 5 | 50720-KWP-E00 | RUBBER, L. PILLION STEP | 1 | |
| 6 | 90131-KWP-F00 | PIN, PILLION STEP | 2 | |
| 7 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 8 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 2 | |
