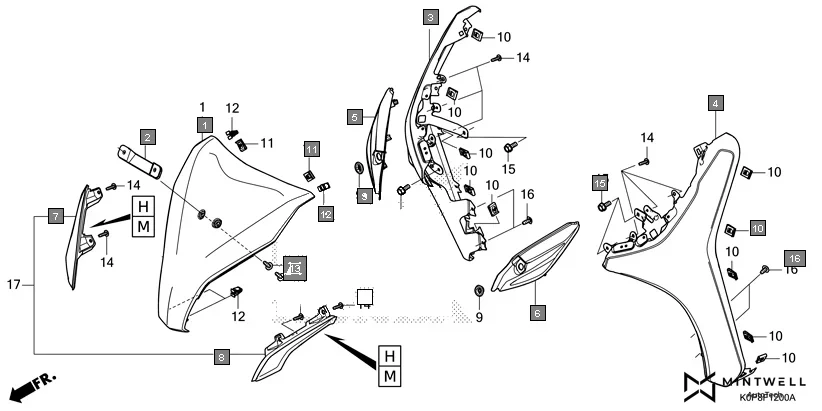

F-12 - FRONT COVER
HONDA Activa SCV110P/SR · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64200-K0P-D00ZE | COVER SET, FR.(WL) *TYPE5* | 1 | |
| 1 | 64200-K0P-D00ZJ | COVER SET, FR.(WL) *TYPE1* | 1 | |
| 1 | 64200-K0P-D00ZL | COVER SET, FR.(WL) *TYPE7 1* | 1 | |
| 1 | 64200-K0P-D00ZM | COVER SET, FR.(WL) *TYPE2 1* | 1 | |
| 1 | 64200-K0P-D00ZQ | COVER SET, FR.(WL) *TYPE4 1* | 1 | |
| 1 | 64200-K0P-D00ZR | COVER SET, FR.(WL) *TYPE3 1* | 1 | |
| 2 | 64303-K0L-D00 | BRACKET, FR. NUMBER PLATE | 1 | |
| 3 | 64304-K0P-D00ZZ | COVER, R. FR. | 1 | |
| 4 | 64305-K0P-D00ZZ | COVER, L. FR. | 1 | |
| 5 | 64307-K0P-D00ZA | GARNISH, R. FR. BASE *NH1* BLACK | 1 | |
| 6 | 64308-K0P-D00ZA | GARNISH, L. FR. BASE *NH1* BLACK | 1 | |
| 7 | 64380-K0P-D00 | GARNISH, R. FR. TOP | 1 | |
| 8 | 64390-K0P-D00 | GARNISH, L. FR. TOP | 1 | |
| 9 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 10 | 90344-KRB-900 | NUT, CLIP, 5MM | 10 | |
| 11 | 90344-KRP-900 | NUT CLIP 5MM | 2 | |
| 12 | 90666-K59-A11 | CLIP, SNAP FITTING(PO) | 4 | |
| 16 | 93903-25210 | SCREW, TAPPING, 5X12 | 4 | |
