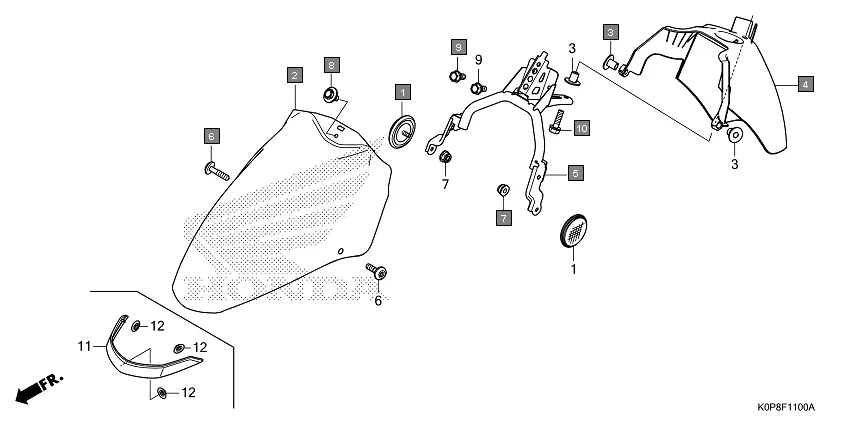

F-11 - FRONT FENDER
HONDA Activa SCV110P/SR · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KTE-601 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 61100-K0P-D00ZZ | FENDER A, FR. | 1 | |
| 3 | 61103-KRY-900 | COLLAR, A FR.FENDER | 3 | |
| 4 | 61120-K0P-D00ZA | FENDER B, FR. *NH1* BLACK | 1 | |
| 5 | 61300-K0P-D00 | STAY COMP., FR. FENDER | 1 | |
| 6 | 90106-K0L-D00 | BOLT, SPECIAL HEX., 6X25 | 2 | |
| 7 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 8 | 93404-06012-08 | BOLT-WASHER, 6X12 | 1 | |
| 10 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
