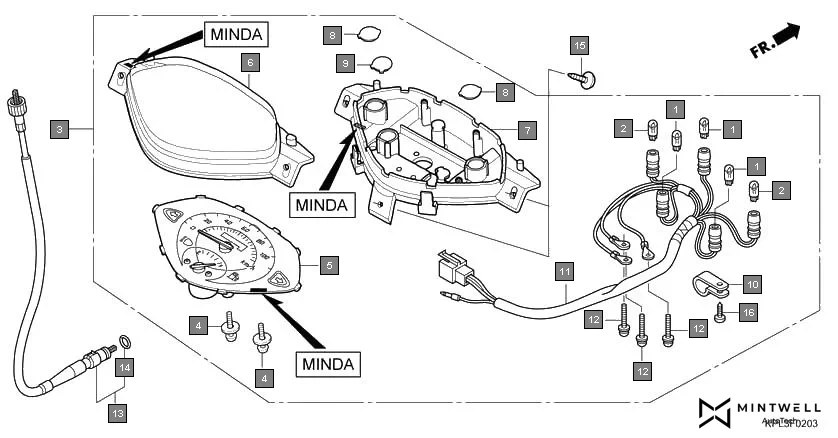

F-2-3 - METER(SCV110D,E)(MINDA)
HONDA Activa SCV110E · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 3 | 37200-KWP-D21 | SPEEDOMETER ASSY. | 1 | |
| 4 | 37205-KWP-D21 | SCREW-WASHER, SPECIAL, 4X8 | 2 | |
| 5 | 37210-KWP-D21 | METER COMP., SPEED & FUEL | 1 | |
| 6 | 37211-KWP-D21 | LENS | 1 | |
| 7 | 37212-KWP-D21 | CASE | 1 | |
| 8 | 37213-KWP-D21 | LENS, PILOT TURN | 2 | |
| 9 | 37214-KWP-D21 | LENS, PILOT(HIGH BEAM) | 1 | |
| 10 | 37215-KWP-D21 | CLAMP | 1 | |
| 11 | 37224-KWP-D21 | SOCKET COMP. | 1 | |
| 12 | 37305-KWP-D21 | SCREW, 3X22 | 3 | |
