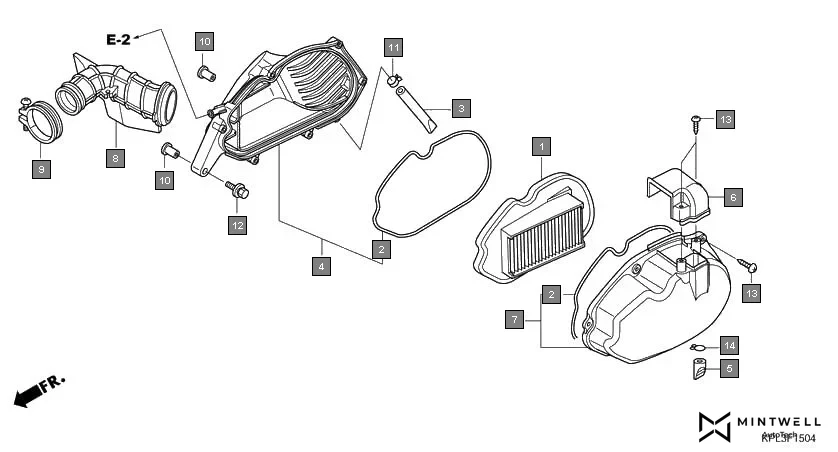

F-15-4 - AIR CLEANER(SCV110E)
HONDA Activa SCV110E · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17210-KVT-D00 | ELEMENT, AIR CLEANER | 1 | |
| 2 | 17212-GEE-000 | SEAL, AIR CLEANER COVER | 2 | |
| 3 | 17216-KVT-940 | TUBE, DRAIN | 1 | |
| 4 | 17225-KVT-D00 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 5 | 17234-KCC-941 | TUBE, AIR CLEANER DRAIN | 1 | |
| 6 | 17234-KWP-E00 | COVER, AIR CLEANER DUCT | 1 | |
| 7 | 17235-KWP-E00 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 8 | 17253-KWP-900 | TUBE,AIR/C CONN | 1 | |
| 9 | 17254-KWP-D00 | BAND, AIR CLEANER CONNECTINGTUBE(40) | 1 | |
| 10 | 50731-KV3-770 | COLLAR, PILLION STEP SET | 2 | |
| 12 | 93404-06040-07 | BOLT, WASH, 6 X 40 | 2 | |
| 14 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
