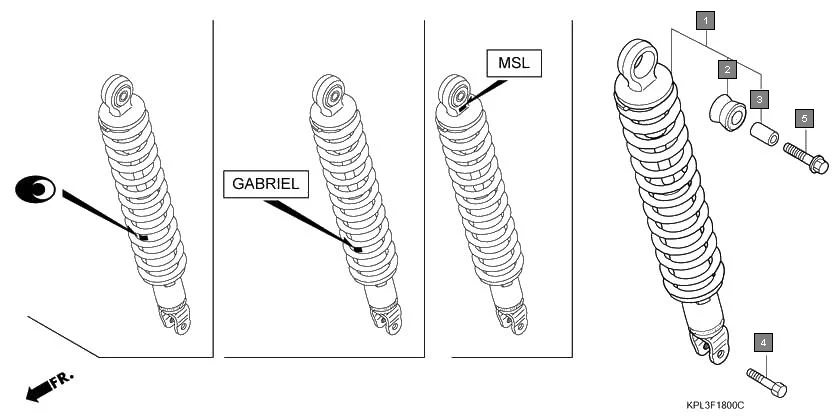

F-18 - REAR CUSHION
HONDA Activa SCV110E · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-KPL-901 | CUSHION ASSY., RR.(SHOWA) | 1 | |
| 1 | 52400-KPL-902 | CUSHION ASSY., RR.(GABRIEL) | 1 | |
| 2 | 52485-KPL-902 | BUSH, RUBBER(GABRIEL) | 1 | |
| 2 | 52485-088-901 | BUSH, RUBBER (UNDER) | 1 | |
| 3 | 52486-GA7-003 | COLLAR, RUBBER BUSH (UNDER) | 1 | |
| 3 | 52487-KPL-902 | COLLAR, RUBBER BUSH(GABRIEL) | 1 | |
| 4 | 92201-08032-0A | BOLT, FLANGE, 8 X32 | 1 | |
| 5 | 95801-10035-00 | BOLT, FLANGE, 10X35 | 1 | |
