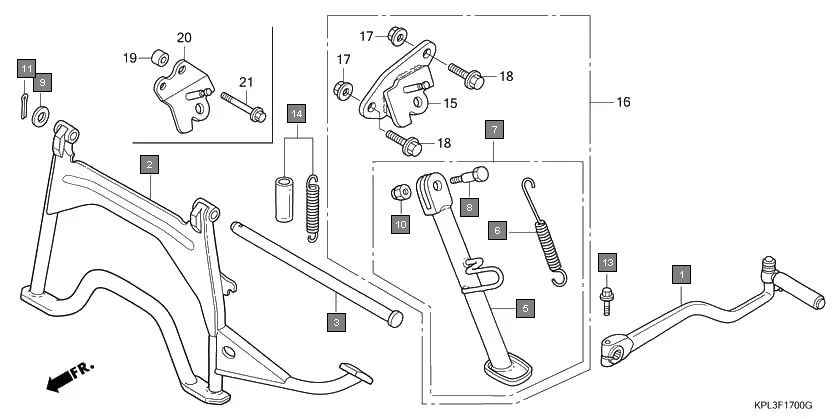

F-17 - KICK STARTER ARM/STAND
HONDA Activa SCV110E · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28300-KPL-900 | ARM ASSY., KICK STARTER | 1 | |
| 2 | 50500-KPL-900 | STAND COMP., MAIN | 1 | |
| 3 | 50503-GCC-000 | SHAFT, MAIN STAND | 1 | |
| 5 | 50530-KPL-900 | BAR COMP., SIDE STAND | 1 | |
| 6 | 50536-KPL-900 | SPG. SIDE SET | 1 | |
| 7 | 50560-KPL-900 | STAND SET, SIDE | 1 | |
| 8 | 90109-KPL-900 | BOLT SIDE STAND PIVOT | 1 | |
| 9 | 90113-GCC-000 | WASHER | 1 | |
| 11 | 94201-25250 | PIN, SPLIT, 2.5X25 | 1 | |
| 13 | 95701-06022-07 | BOLT,FLANGE,6 X 22 | 1 | |
| 14 | 50505-GCC-000 | SPG.ASSY., MAIN STAND | 1 | |
