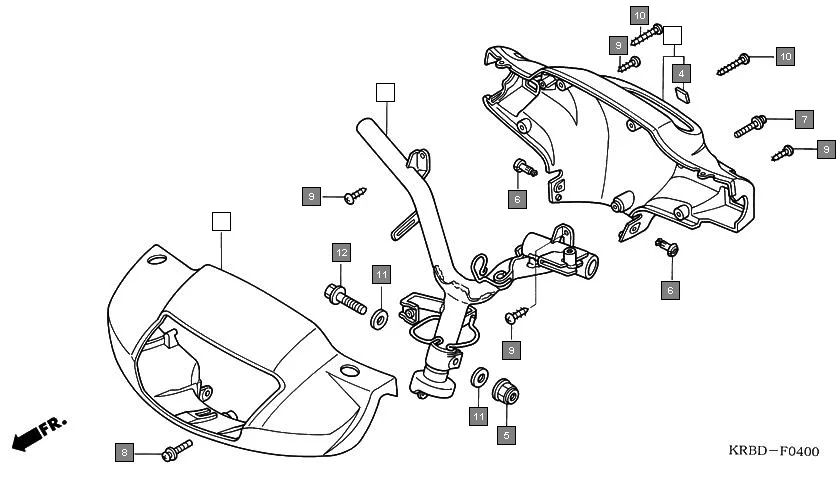

F-4 - STEERING HANDLE/HANDLE COVER
HONDA Eterno SC1504 · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-KRB-900 | HANDLE COMP., STEERING | 1 | |
| 2 | 53205-KRB-900ZA | COVER, FR. HANDLE *BG126M* FAB GREEN METALLIC | 1 | |
| 2 | 53205-KRB-900ZB | COVER, FR. HANDLE *B172M* AZURE BLUE METALLIC | 1 | |
| 2 | 53205-KRB-900ZC | COVER, FR. HANDLE *GY125* GRAYISH GREEN | 1 | |
| 2 | 53205-KRB-900ZD | COVER, FR. HANDLE *NH1* BLACK | 1 | |
| 2 | 53205-KRB-900ZE | COVER, FR. HANDLE *Y179M* SILVERY BEIGE METALLIC | 1 | |
| 3 | 53250-KRB-900ZA | COVER COMP., RR. HANDLE *NH1* BLACK | 1 | |
| 4 | 86150-GFC-901 | EMBLEM, PRODUCT(MARUI) | 1 | |
| 5 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
| 6 | 90683-GAZ-930 | CLIP TRIM | 2 | |
| 7 | 93891-05016-07 | SCREW WASH 5X16 | 1 | |
| 8 | 93891-05025-07 | SCREW, WASH, 5X25 | 1 | |
| 10 | 93903-24880 | SCREW, TAPPING, 4X35 | 2 | |
| 11 | 94102-10000 | WASHER, PLAIN, 10MM | 2 | |
| 12 | 95801-10045-08 | BOLT, FLANGE, 10X45 | 1 | |
