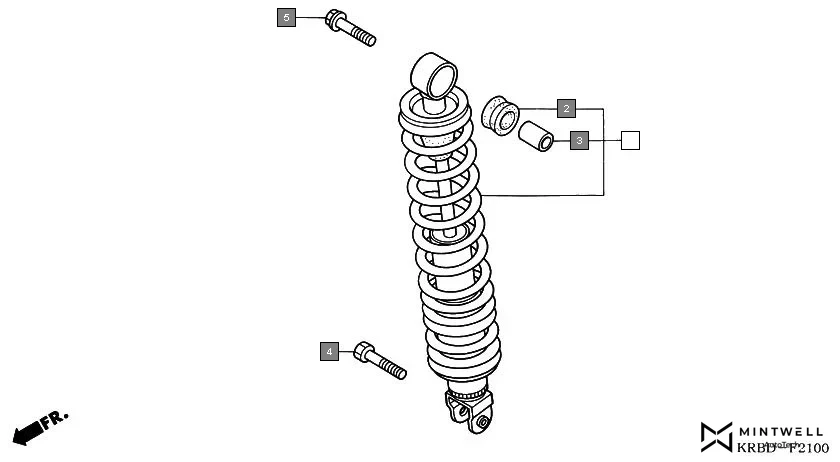

F-21 - REAR CUSHION
HONDA Eterno SC1504 · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-KRB-901 | CUSHION ASSY., RR. | 1 | |
| 2 | 52485-088-901 | BUSH, RUBBER (UNDER) | 1 | |
| 3 | 52486-GA7-003 | COLLAR, RUBBER BUSH (UNDER) | 1 | |
| 4 | 92201-08032-0A | BOLT, FLANGE, 8 X32 | 1 | |
| 5 | 95801-10038-00 | BOLT, FLANGE, 10X38 | 1 | |
