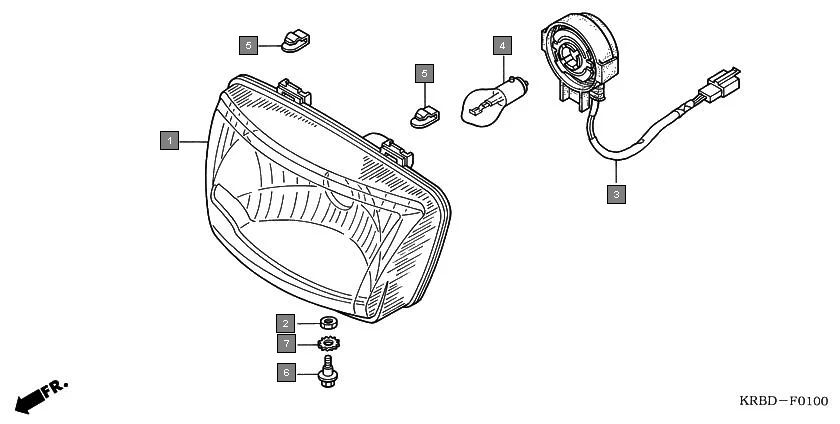

F-1-HEADLIGHT
HONDAEterno SC1504 · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33120-KRB-901 | HEADLIGHT UNIT | 1 | |
| 2 | 33128-GBL-003 | NUT, SPECIAL | 1 | |
| 3 | 33130-KRB-901 | SOCKET COMP., HEADLIGHT | 1 | |
| 4 | 34901-KRB-900 | BULB, HEADLIGHT(12V 35/35W) | 1 | |
| 5 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 6 | 90103-GW3-980 | BOLT, ADJUSTING | 1 | |
| 7 | 90307-GW3-980 | WASHER, LOCK, 6MM | 1 |
